Name: Industrial VOC Gas Transmitter With RS485 Modbus And Relay Alarm Output Reliable Gas Detector
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: YT-95H
Price: 1,037.00 USD
Availability: InStock

Informazioni dettagliate

Gas rilevato:	COV	Allineare:	0-100 ppm
Resolusion:	0,1 ppm	Tipo di sensore:	Elettrochimico
Codice HS:	9027100090	Dimensioni:	180 mm × 150 mm × 90 mm
Peso:	meno di 1,6 kg	Grado antideflagrante:	Ex d IIC T6 GB
Display:	schermo LCD	Ripetibilità:	≤ ± 1%
F.S./anno):	≤ ± 1%

Descrizione di prodotto

Explosion Proof Built For Harsh Industrial Areas VOC Gas Detector With IP65 Protection

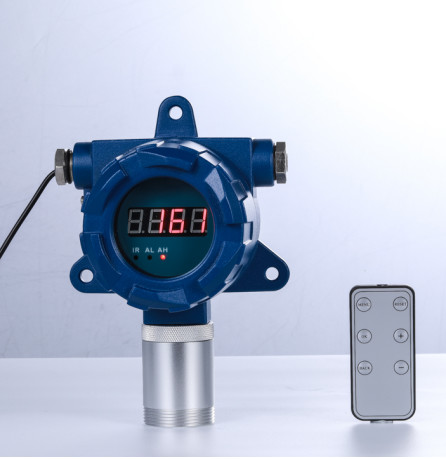

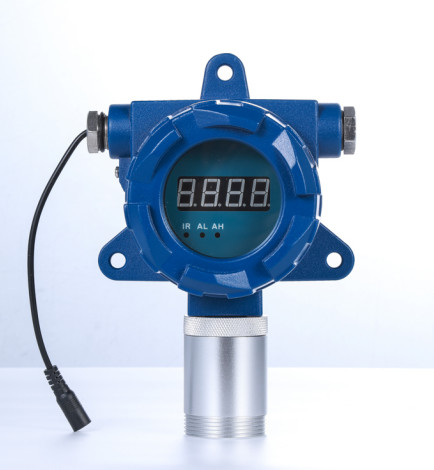

YT-95H-A Fixed VOC Gas Detector

High-precision Fixed VOC Gas Detector with diffusion detection principle, designed for industrial safety applications.

Product Overview

YT-95H/YT-95H-A series is a cost-effective explosion-proof transmitter for the detection of flammable gases and toxic gases. Featuring a 3-wire 4 to 20 mA analog output with relays and RS485 Modbus protocol, it's compatible with most control systems. Third-party components such as horns, warning lights, and fans can be integrated into the system. With optional wireless function, operators can view data remotely on laptops, mobile phones, or cloud systems.

Key Features

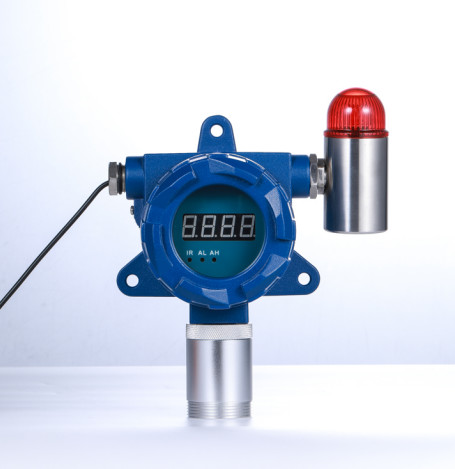

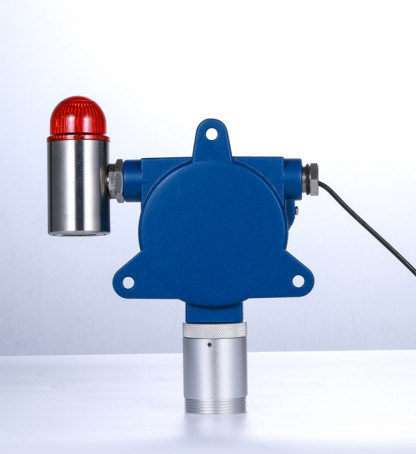

Online Monitoring with Sound/Light Alarm (Optional): 24-hour continuous monitoring with real-time data display. High/low alarm with sound and light, sound >90dB, with settable alarm points
Non-Contact Device Control: Infrared ray controller for remote control of alarm point settings, zero calibration, and address modification
Variety of Installation Methods: 4-20mA current signal output compatible with different controllers. RS485 MODBUS signal output. Relay signal output for controlling ventilators, generators, or other external devices
Data Transmission: Compatible with PC software for data transmission to computers. Optional wireless data transmission including Lora and 4G
High Quality Case: Die-cast aluminum case, strong and durable. Optional stainless steel case. IP65 protection degree - water-proof, dust-proof, explosion-proof

Technical Specifications

Gas Detected	VOC
Detection Principle	Electrochemical
Measure Range	Specified according to application
Resolution	Specified according to application
Accuracy	≤±2-5%FS (depending on the specific sensor)
Response Time (T90)	15-30s (depending on the specific sensor)
Repeatability	≤±1%
Zero Shift	≤±1% (F.S./year)
Display	4 digits Nixie tube display
Connection Mode	G1/2 external thread explosion-proof flexible pipe
Thread Size	M45×2mm
Temperature	-20℃ ~ 50℃
Humidity	0-95%RH (no condensation)
Material Case	Die-cast aluminum, Sensor housing: aluminum alloy or 316 stainless steel
Power	12-36V DC
Dimensions	180×150×90mm
Weight	≤1.6kg
Explosion-proof Grade	Ex d IIC T6 Gb

Industrial VOC Gas Transmitter With RS485 Modbus And Relay Alarm Output Reliable Gas Detector 0

Industrial VOC Gas Transmitter With RS485 Modbus And Relay Alarm Output Reliable Gas Detector 1

Industrial VOC Gas Transmitter With RS485 Modbus And Relay Alarm Output Reliable Gas Detector 2

Industrial VOC Gas Transmitter With RS485 Modbus And Relay Alarm Output Reliable Gas Detector 3

Industrial VOC Gas Transmitter With RS485 Modbus And Relay Alarm Output Reliable Gas Detector 4

Industrial VOC Gas Transmitter With RS485 Modbus And Relay Alarm Output Reliable Gas Detector 5

Prodotto Tag:

Luogo di origine:	Cina
Marca:	SAFEGAS
Certificazione:	CNEX CE ISO9001, ISO14001, ISO45001
Numero di modello:	YT-95H

Quantità di ordine minimo:	1
Prezzo:	negoziabile
Imballaggi particolari:	Cartone
Tempi di consegna:	3 giorni di lavoro
Termini di pagamento:	T/T, Unione Occidentale
Capacità di alimentazione:	1000 pezzi al mese
