Name: Portable Helium Gas Detector with 0-100%VOL Range, Electrochemical Sensor, and IP66 Protection for Pipeline Leak Detection
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: SKY2000
Price: 2,210.00 USD
Availability: InStock

Informazioni dettagliate

Gas rilevato:	LUI	Allineare:	0-99,99% vol
Resolusion:	0,01%vol	Tipo di sensore:	Elettricochimico
Tempo di risposta:	5s	Ripetibilità:	≤ ± 1%
Codice HS:	9027100090	Garanzia:	1 anno
Peso:	300 g	Misurare:	2057532
Grado di protezione:	IP66

Descrizione di prodotto

SKY2000 Portable Helium Gas Detector

High-precision portable helium gas detector with pump-suction detection principle, designed for pipeline leak detection and scientific applications.

Product Overview

SKY2000 series gas detector is a fast response, high accuracy gas measurement device. With internal sampling pump, fast sampling speed and high flow rate, ensuring quick response time. Unique design, small size and easy to carry. Special high intensity engineering plastics housing, suitable for various situations and environments.

Key Features

LCD dot matrix display with backlight function
Built-in sampling pump
Explosion-proof certified: Ex ia IIC T4 Ga
Span-calibration and zero calibration functions for accurate detection
One-press factory setting restoration

Technical Specifications

Gas Detected	Helium (HE); other gases can be specified
Detection Principle	Electrochemical
Measure Range	0-99.99% VOL
Resolution	0.01% VOL
Precision	≤ ± 1-5% F.S
Data Logging (Optional)	100,000 readings stored on device, downloadable via PC software
Response Time	≤30 seconds
Repeatability	≤ ± 1%
Zero Shift	≤ ± 1% (F.S/year)
Operating Language	Chinese/English
Temperature Range	20℃ ~ 50℃
Explosion-Proof Rating	Ex ia IIC T4 Ga
Alarm Mode	Sound, light, vibration
Dimensions	2057532mm
Recovery Time	≤10 seconds
Linearity Error	≤ ± 1%
Display	LCD dot matrix display
Gas Unit	Switchable units
Humidity	0-90% RH
Degree of Protection	IP66
Operating Time	100 hours (pump off)
Weight	300g

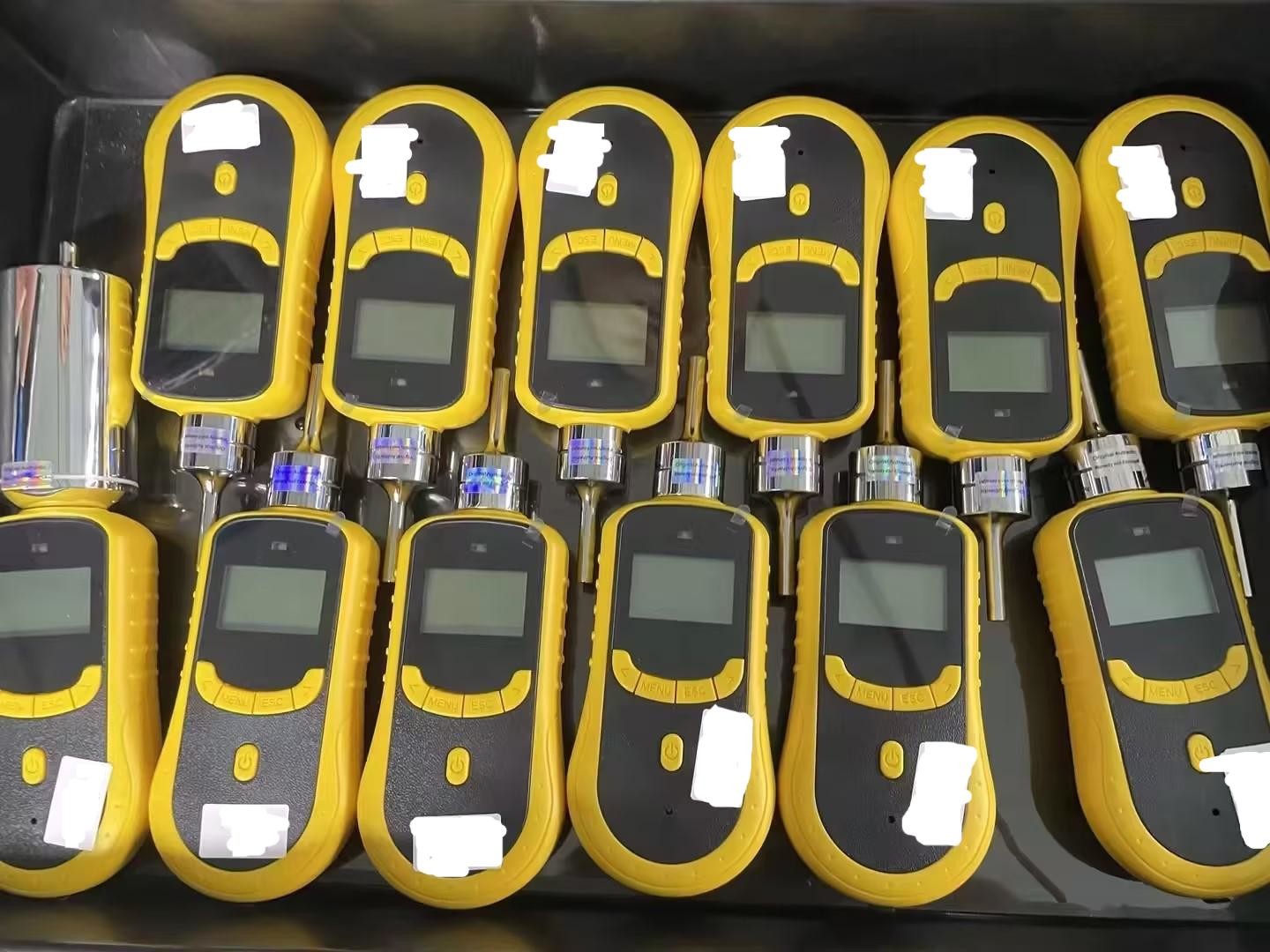

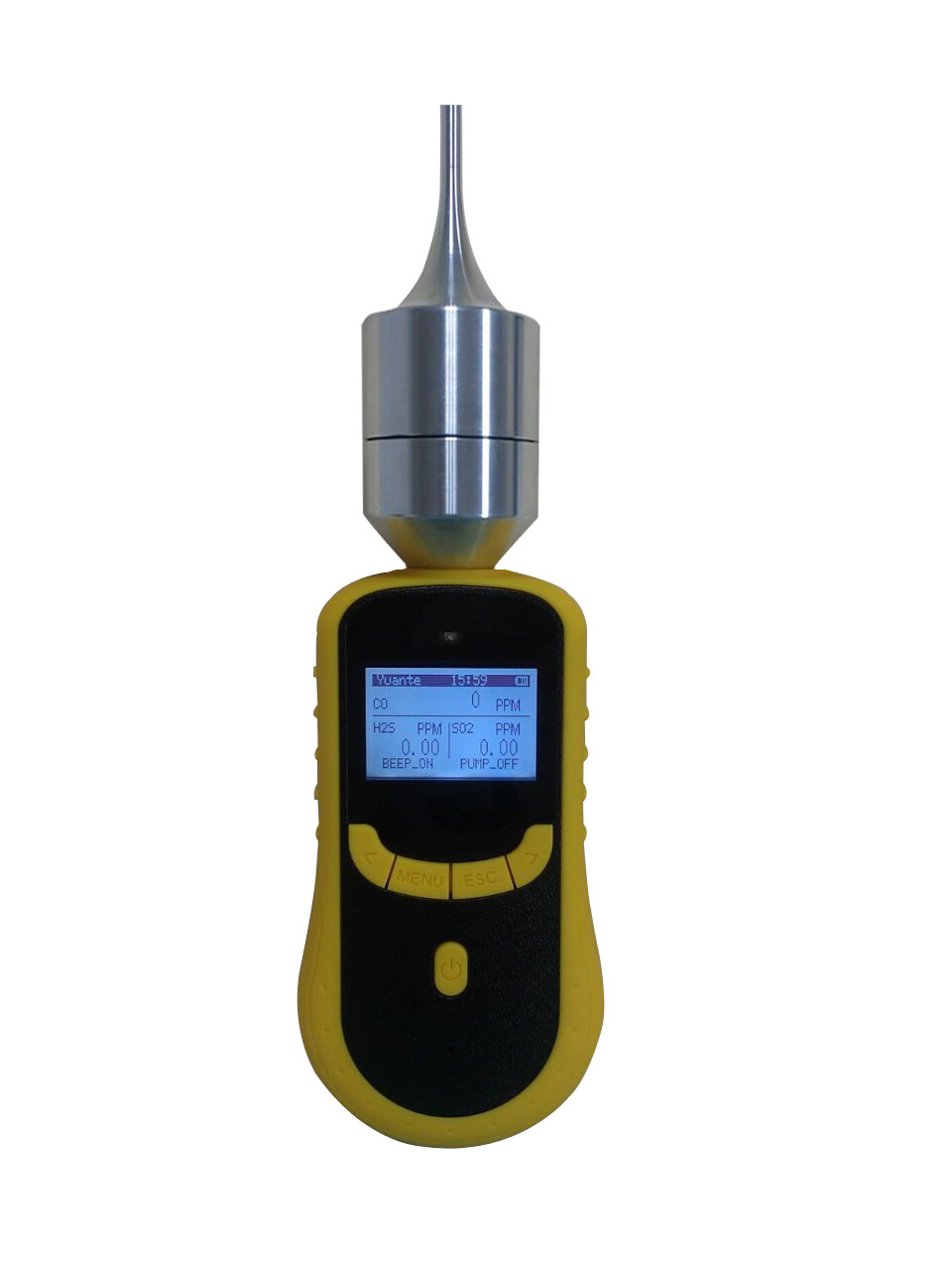

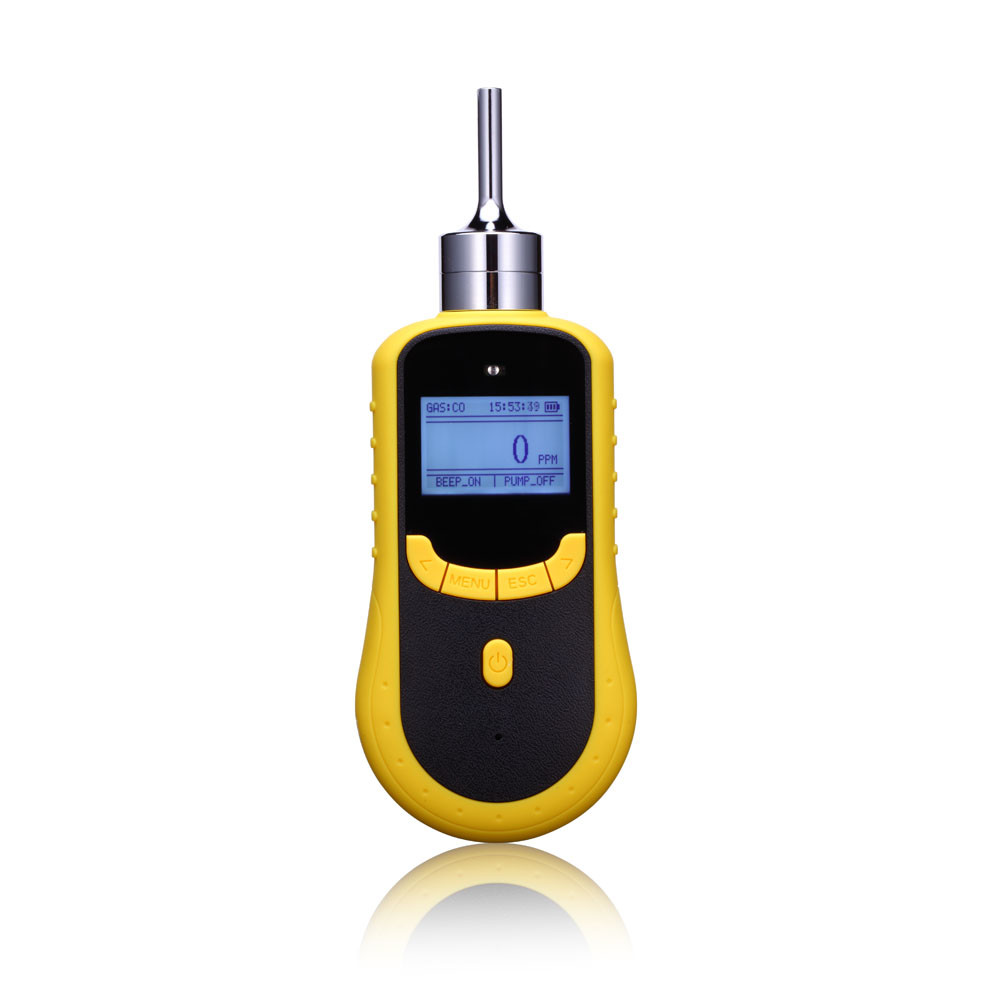

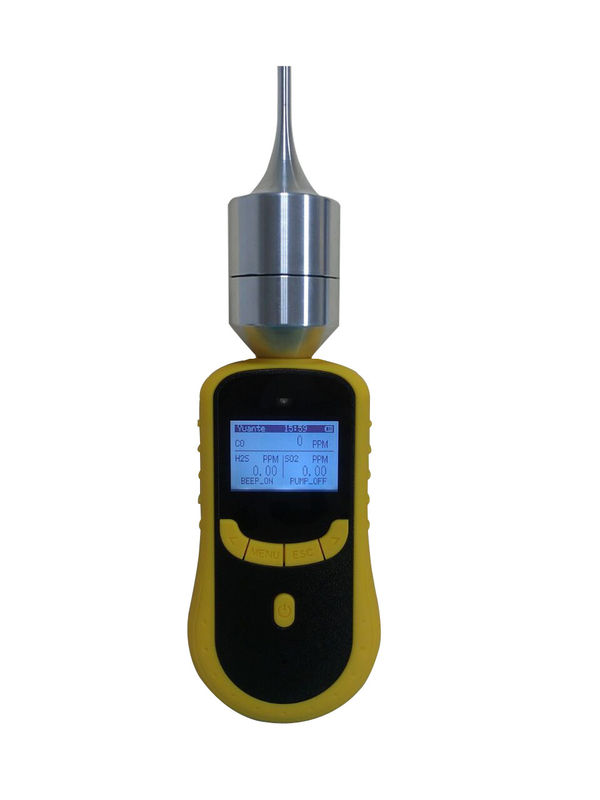

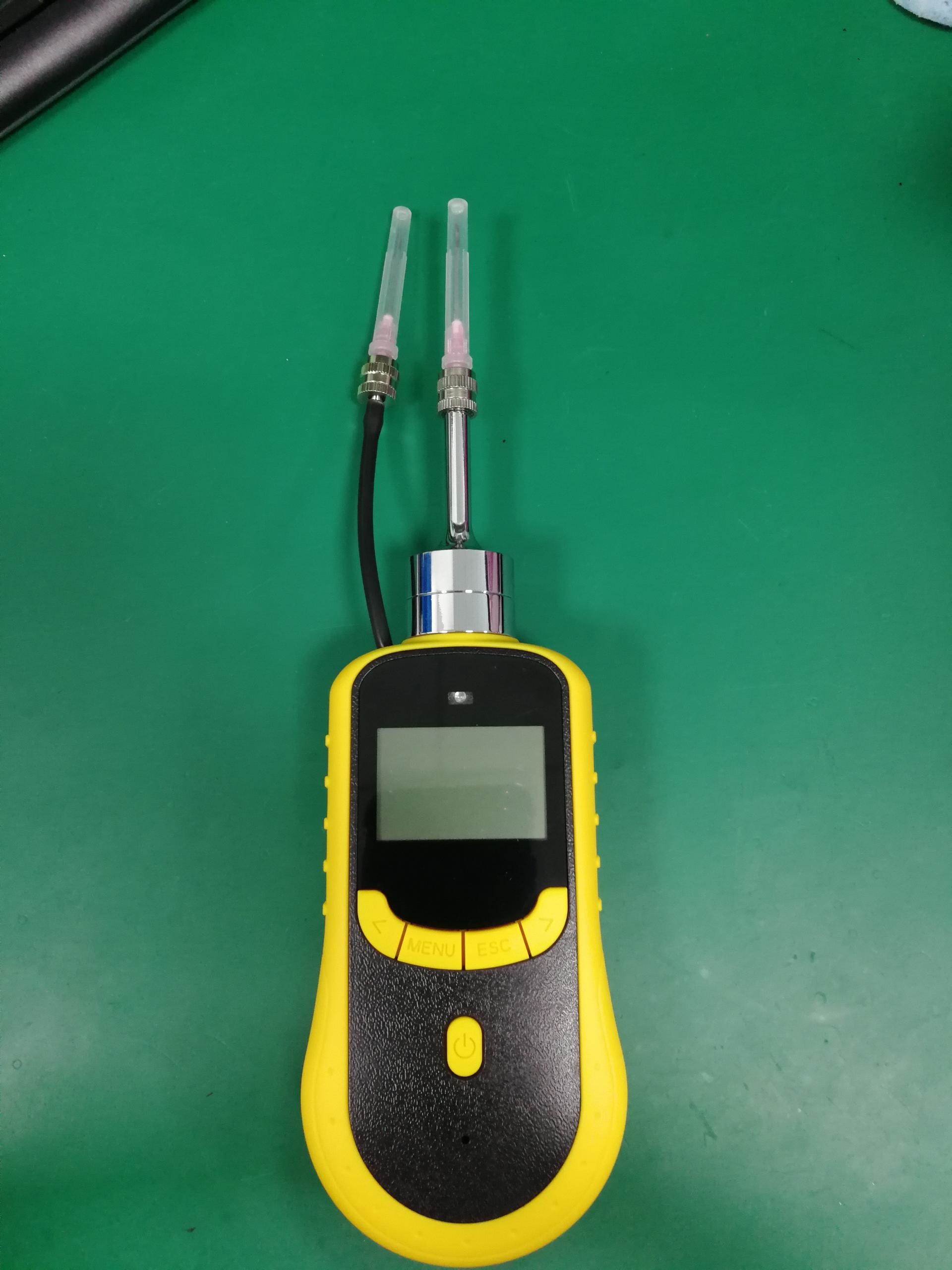

Product Images

Company Advantages

R&D team experience: over 25 years
Company certifications: ISO9001, ISO45001
Product certifications: IECEx, ATEX, CE
Delivery time: 5-7 days
Annual capacity: 80,000 units
Professional 7*24 hours customer service

Manufacturer Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Product Line

Our product portfolio includes portable detectors, fixed systems, controller panels and particle counters:

Portable: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA
Fixed: YT-95H, YT-98H, YT-96H, SG100, SG200
Controllers: YT-1100H, YT-1600H, YT-1800H
Particle Counter: AQD5000, SKY6000-PM, SKY2000-PM
