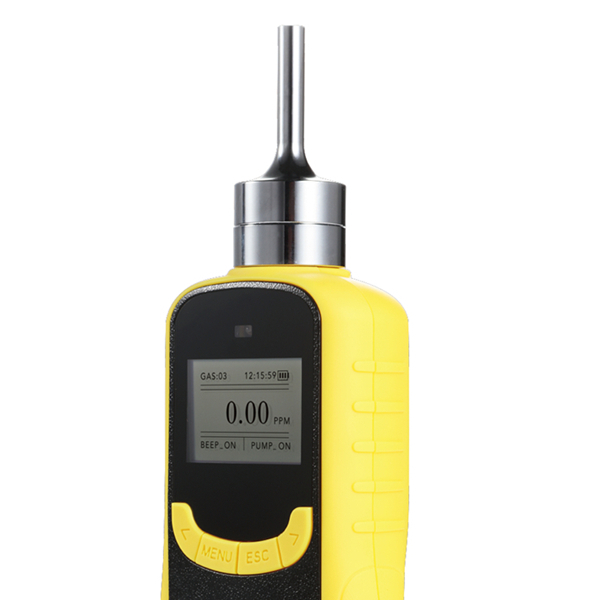

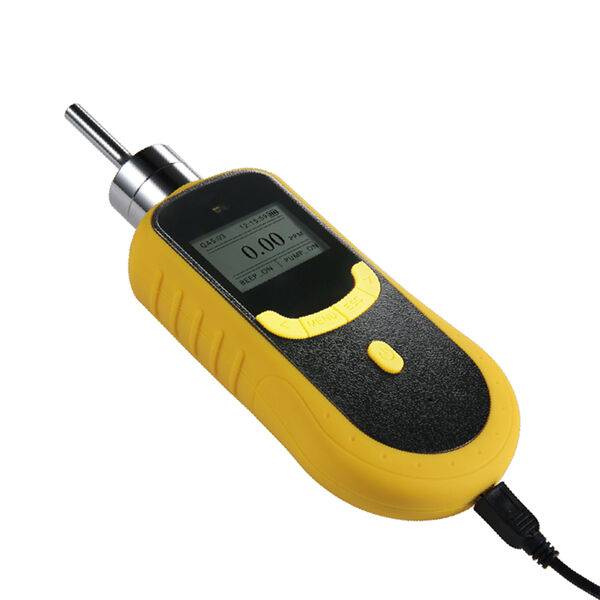

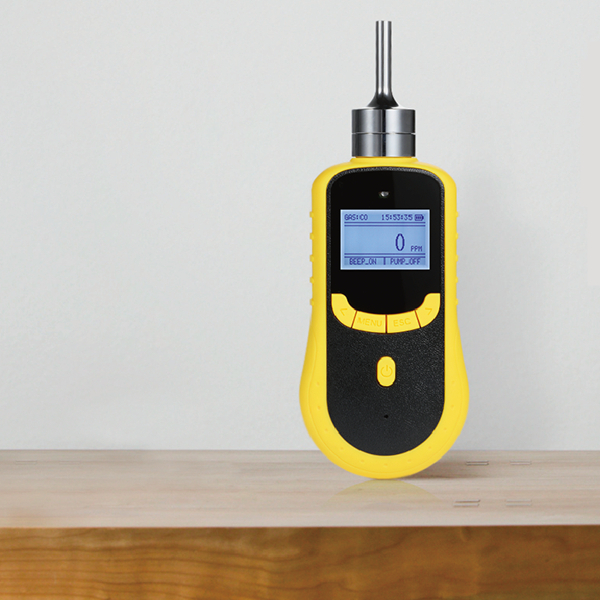

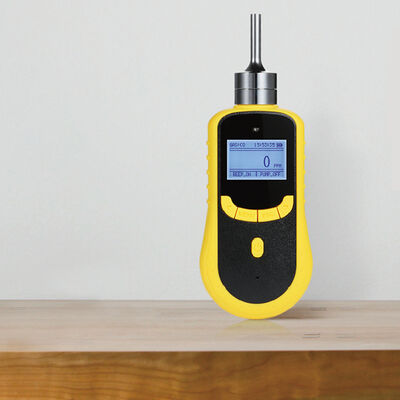

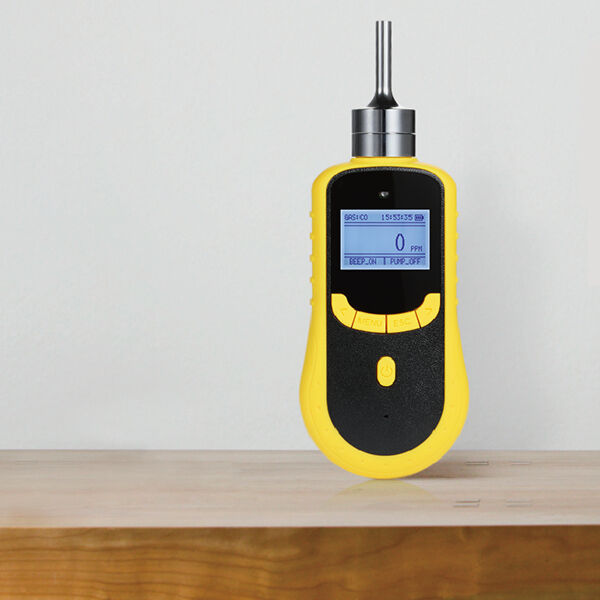

SKY2000 Portable N2 Gas Detector
High-precision portable nitrogen gas detector with pump-suction detection principle, designed for industrial safety applications in air separation plants and laboratory environments.
Product Overview
The SKY2000 series gas detector is a fast-response, high-accuracy gas measurement device featuring an internal sampling pump for rapid sampling speed and high flow rate, ensuring optimal response time. Its unique compact design and high-intensity engineering plastics housing make it suitable for various industrial situations and environments.
Key Features
- LCD dot matrix display with backlight function
- Built-in sampling pump for efficient gas detection
- Explosion-proof certified (Ex ia IIC T4 Ga)
- Span-calibration and zero calibration functions for accurate detection
- One-button factory reset functionality
Technical Specifications
| Gas Detected | N2; other gases can be specified |
| Detection Principle | Electrochemical |
| Measurement Range | 0-100% VOL |
| Resolution | 0.10% VOL |
| Precision | ≤ ± 1-5% F.S |
| Data Logging | 100,000 readings storage with PC software download (optional) |
| Response Time | ≤30 seconds |
| Repeatability | ≤ ± 1% |
| Zero Shift | ≤ ± 1% (F.S/year) |
| Operating Language | Chinese/English |
| Temperature Range | 20℃ ~ 50℃ |
| Explosion-Proof Rating | Ex ia IIC T4 Ga |
| Alarm Mode | Sound, light, vibration |
| Dimensions | 205*75*32mm |
| Recovery Time | ≤10 seconds |
| Linearity Error | ≤ ± 1% |
| Display | LCD dot matrix display |
| Gas Unit | Switchable units |
| Humidity Range | 0-90% RH |
| Protection Degree | IP66 |
| Operating Time | 100 hours (pump off) |
| Weight | 300g |
Company Advantages
R&D team experience: over 25 years
Company certifications: ISO9001, ISO45001
Product certifications: IECEx, ATEX, CE
Delivery time: 5-7 days
Annual capacity: 80,000 units
Professional 7*24 hours customer service
Manufacturer Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Product Line
Portable Detectors: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA
Fixed Systems: YT-95H, YT-98H, YT-96H, SG100, SG200
Controllers: YT-1100H, YT-1600H, YT-1800H
Particle Counters: AQD5000, SKY6000-PM, SKY2000-PM
