YT-98H/YT-98H-A Fixed Gas Detector
Built-in pump-suction single & multi-gas detector with IECEx and ATEX certification. Features non-contact magnetic wand design for safe operation in explosion-proof areas and oil & gas industries. Offers 3-wire 4-20mA output with relays, HART, and Modbus protocols for compatibility with most control systems.
Advanced Pump Technology
Built-in high-suction vacuum pump with over 12,000 hours continuous operation. Provides faster response detection compared to traditional diffusion sampling. Suitable for normal open areas or underground confined spaces to detect gas concentration at high altitudes, ensuring personnel safety.
Display & Interface
2.4-inch high-definition color screen with simulated menu icons. Supports Chinese and English language switching. Capable of detecting up to six gases simultaneously with settable high/low alarm values and unit conversion.
Control & Output Options
Infrared remote control operation without opening the cover. Standard 3-wire 4-20mA, RS485, and 1 group relay output (up to 2 groups optional). External sound and light alarm available. Optional 0-10V, 0-5V, 1-5V outputs.
Protection & Safety Features
Explosion-proof, lightning protection, anti-static, surge protection, waterproof with IP65 rating. Optional: sound and light alarm (integrated or external), water vapor filter cartridge, automatic dehumidification drainage systems, and high-temperature flue gas pretreatment system.
Wireless Connectivity
Wireless transmission options: 2km, 5km, 8km unobstructed range or 2G/4G wireless signal transmission (unlimited distance). Cloud platform enables remote data monitoring, record storage, real-time viewing, and multi-user management.

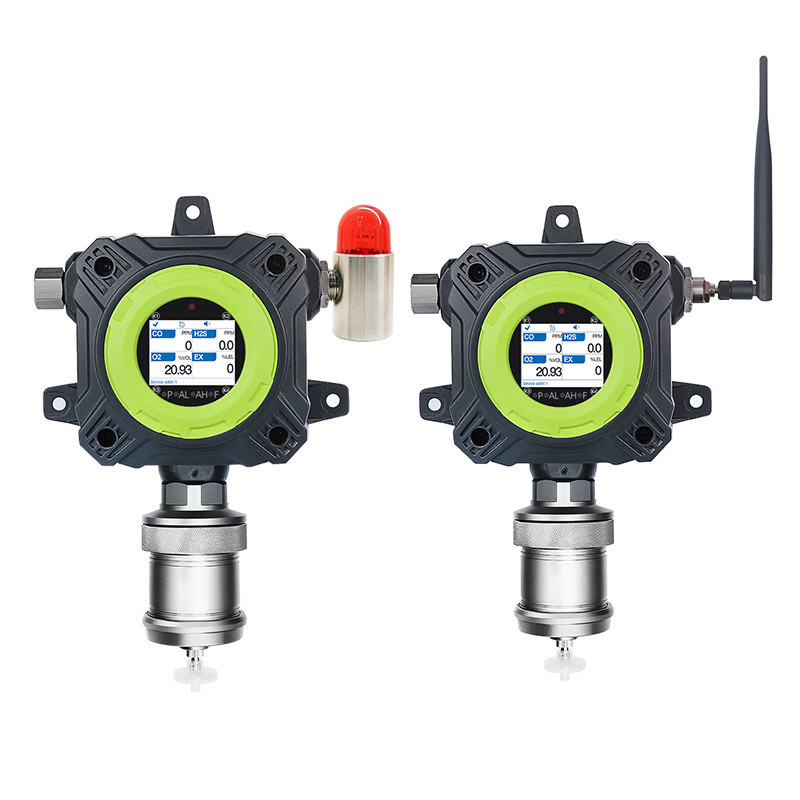

Product Images

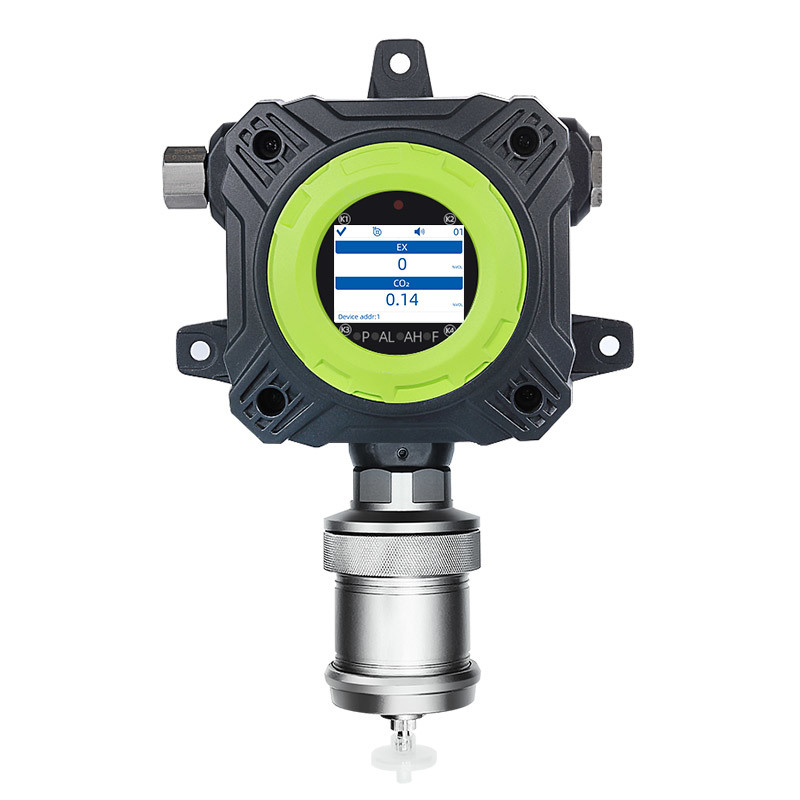

YT-98H (with display)

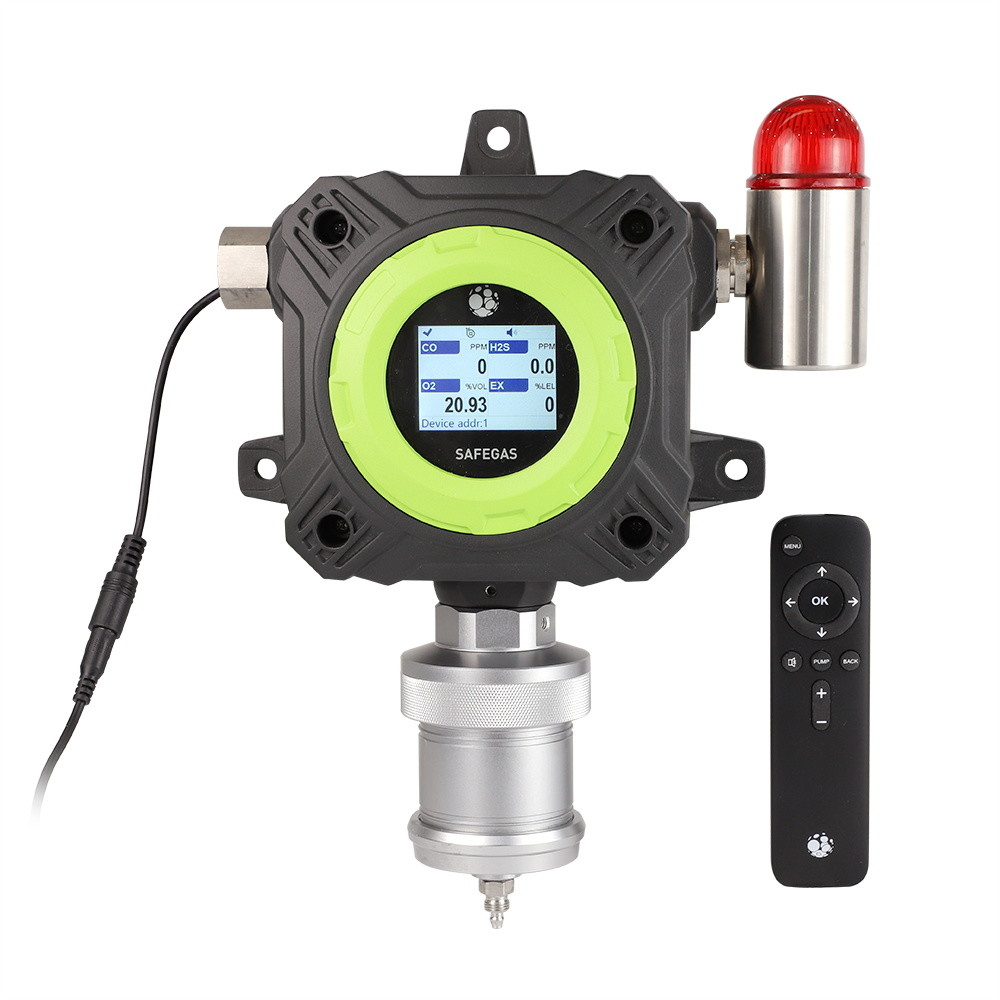

YT-98H-A (with display and alarm light)
Product Advantages
Multi-Gas Detection
Simultaneously detect up to 6 different gases, reducing multiple installations in complex environments
High-Quality Display
2.4-inch industrial-grade HD color screen with 320*240 resolution and 120-degree wide viewing angle
Wireless Capability
Optional wireless module for cloud data upload with SMS alerts and real-time mobile/computer viewing
Fast Response
Internal suction pump ensures rapid detection response times
Automatic Calibration
Full software automatic verification and zero calibration functions for accurate, reliable monitoring
Multiple Outputs
Standard 4-20mA, RS485 Modbus, and relay signal outputs
Remote Control
Infrared remote control for detector operation and settings modification
Alarm System
Optional sound and light alarm activation at preset points
Technical Specifications
| Gas Detected |
Hydrogen (H2) |
| Detection Principle |
Electrochemical |
| Installation Method |
Wall-mounted, piping type, flow-type |
| Measure Range |
0-1000PPM, 0-40000PPM |
| Resolution |
1PPM |
| Accuracy |
≤±2-5%FS |
| Signal Output |
4-20mA, RS485, relay |
| Response Time (T90) |
15-30s (depending on specific sensor) |
| Recovery Time |
≤10S |
| Repeatability |
≤±1% |
| Display |
2.4-inch color display, 320*240 resolution |
| Operating Language |
English/Chinese |
| Display Content |
Gas molecular formula, concentration, unit, pump status |
| Temperature |
-20ºC~55ºC |
| Humidity |
0-95%RH |
| Explosion-Proof |
IECEx: Ex db IIC T6 Gb
ATEX: Ex db IIC T6 Gb |
| Degree of Protection |
IP66 |
| Alarm Mode |
Sound, light |
| Operating Time |
24h |
| Dimensions |
43×27×15cm |
| Weight |
4.6kg |
Why Choose Us?
- 25+ Years R&D Experience: Professional team with extensive gas detection industry knowledge
- Company Certifications: ISO9001, ISO45001 quality management systems
- Product Certifications: IECEx (first in China), ATEX, CE compliance
- Fast Delivery: 5-7 days standard delivery time
- High Capacity: 80,000 units annual production capacity
- 24/7 Support: Professional sales staff providing continuous service
As a professional gas detector manufacturer, we control the entire process from design to sales ensuring consistent product quality. With over 100 independent intellectual property patents, skilled technical workers, and complete industrial production lines, we maintain strict quality control throughout manufacturing.
Our professional R&D department with 25 years of industry experience provides comprehensive technical after-sales support. We implement strict quality management systems with ISO9001 and ISO14001 certifications to deliver safe, environmentally friendly products.
Our products hold IECEx and ATEX explosion-proof certifications, making them suitable for hazardous areas including mines, underground facilities, and oil plants. We are the first and currently only manufacturer in China with this certification.
Core components including ICs and sensors use imported brands like Honeywell, CITY, and Alpha, ensuring detection accuracy, product stability, extended service life, and customer safety protection.
Complete product lines and stable inventory enable fast delivery: 3 days for orders under 10 pieces, within half a month for quantities over 100 pieces.
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer specializing in gas detectors for over 10 years.
What is the MOQ?
Usually 1 piece.
How about the quality of your products?
Our products use imported sensors and components and are fully certified.
How long is the warranty time?
1-year warranty from factory date with lifetime maintenance support.
