Fixed Pump Suction LEL, CO2, CO, H2S, O2 5 In 1 Gas Detector Imported Sensor Wireless Function

Informazioni di base
Place of Origin: China
Marca: SAFEGAS
Certificazione: ATEX/IECEX
Model Number: YT-98H
Minimum Order Quantity: 1
Prezzo: negoziabile
Packaging Details: Carton(43*27*15cm)
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 3000 pieces per month
Informazioni dettagliate
Gas Detected: LEL, CO2, CO, H2S, O2 Detection Principle: Catalytic(LEL),Electrochemical(O2/CO/H2S),Infrared Ray(CO2)
Power: 12-24V DC Accuracy: ≤±2-5%FS
Response time(T90): 15-30s Repeatability: ≤±1%
Pump flow: 0.35-0.5 L/Min Temperature: –20℃~55℃
Humidity(no condensation): 0-95%RH Optional Alarm: buzzer, alarm status display, alarm values is settable
Sampling Way: Pump suction

Descrizione di prodotto


Product Description
YT-98H/YT-98H-A Fixed Gas Detector
YT-98H is a built-in pump-suction single & multi gas detector,with IECEx, ATEX certificate and non-contact magnetic wand design, it can be installed and operated in explosion proof areas, Oil & Gas industry. In addition to a 3-wire 4 to 20-mA output with relays, it also offers HART, Modbus protocols, making it compatible with most control systems. With optional wireless function, operator can view data on laptop, mobile phone or cloud system remotely.

Product Advantage

1.Up to 6 kinds of gases can be detected at the same time.

2.In complex and multi-gas environments, multiple installations can be reduced, saving time and effort 2.4-inch industrial-grade high-definition color screen
with a resolution of 320*240 and a wide viewing angle of 120 degrees

3.With wireless module, data can be uploaded to the cloud platform, environmental protection bureau or other platforms, providing SMS reminder function, the transmission signal is not limited by distance, and can be viewed in real time on mobile phones and computers.(optional)

4.With internal suction pump, fast response

5.With full software automatic verification function and zero calibration function, making gas monitoring more accurate and more reliable

6.Standard 4-20mA current signal, RS485 modbus signal, 1 set of relay signal output

7.Standard infrared remote control, which can remotely control the detector and modify the detector settings

8.With sound and light alarm function, there is sound and light alarm when reaching the alarm point.(optional)

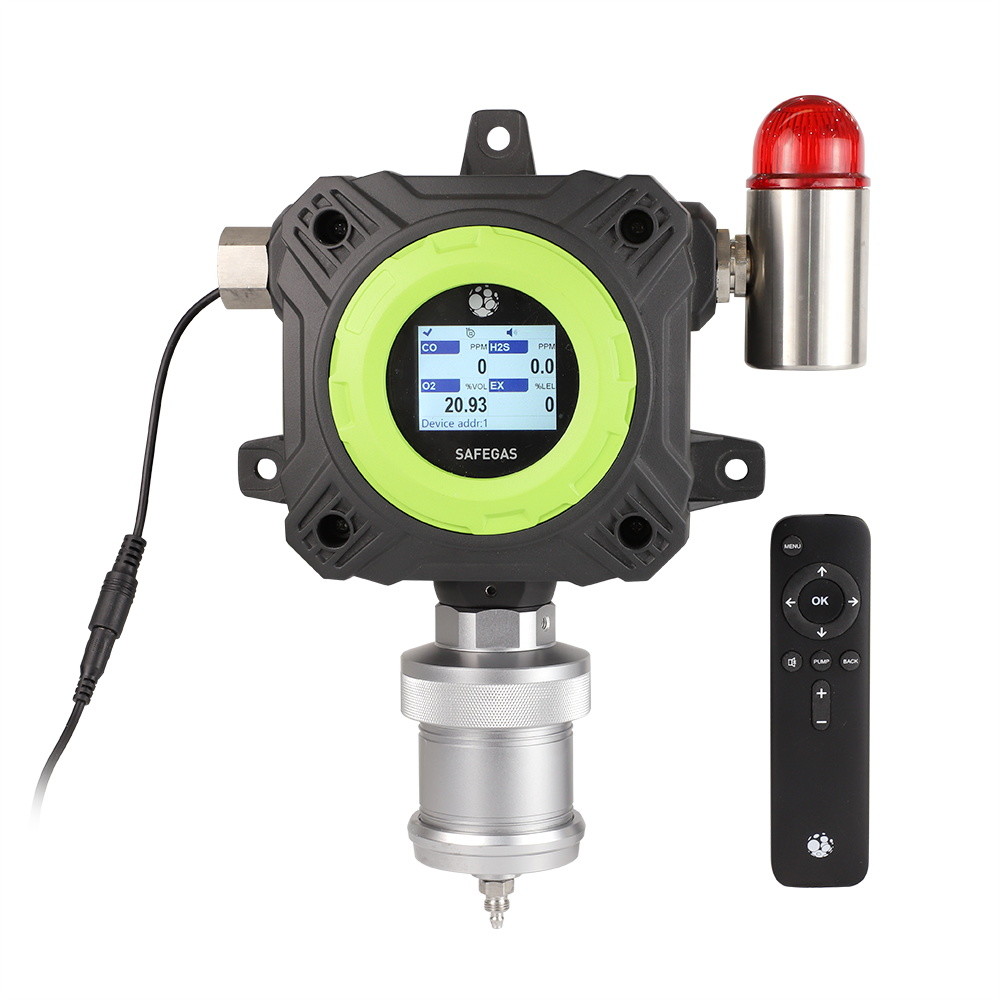

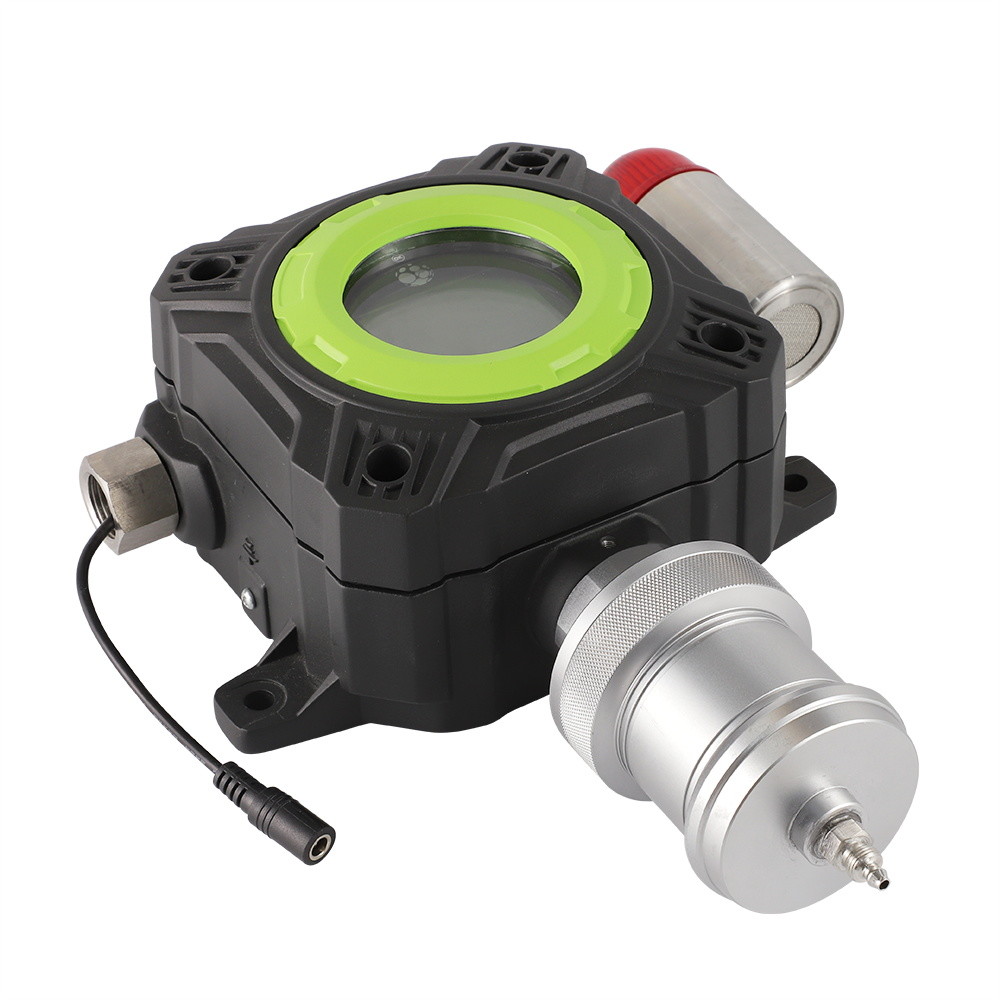

Product Picture--YT-98H(with display)



Fixed Pump Suction LEL, CO2, CO, H2S, O2 5 In 1 Gas Detector Imported Sensor Wireless Function 0

Fixed Pump Suction LEL, CO2, CO, H2S, O2 5 In 1 Gas Detector Imported Sensor Wireless Function 1

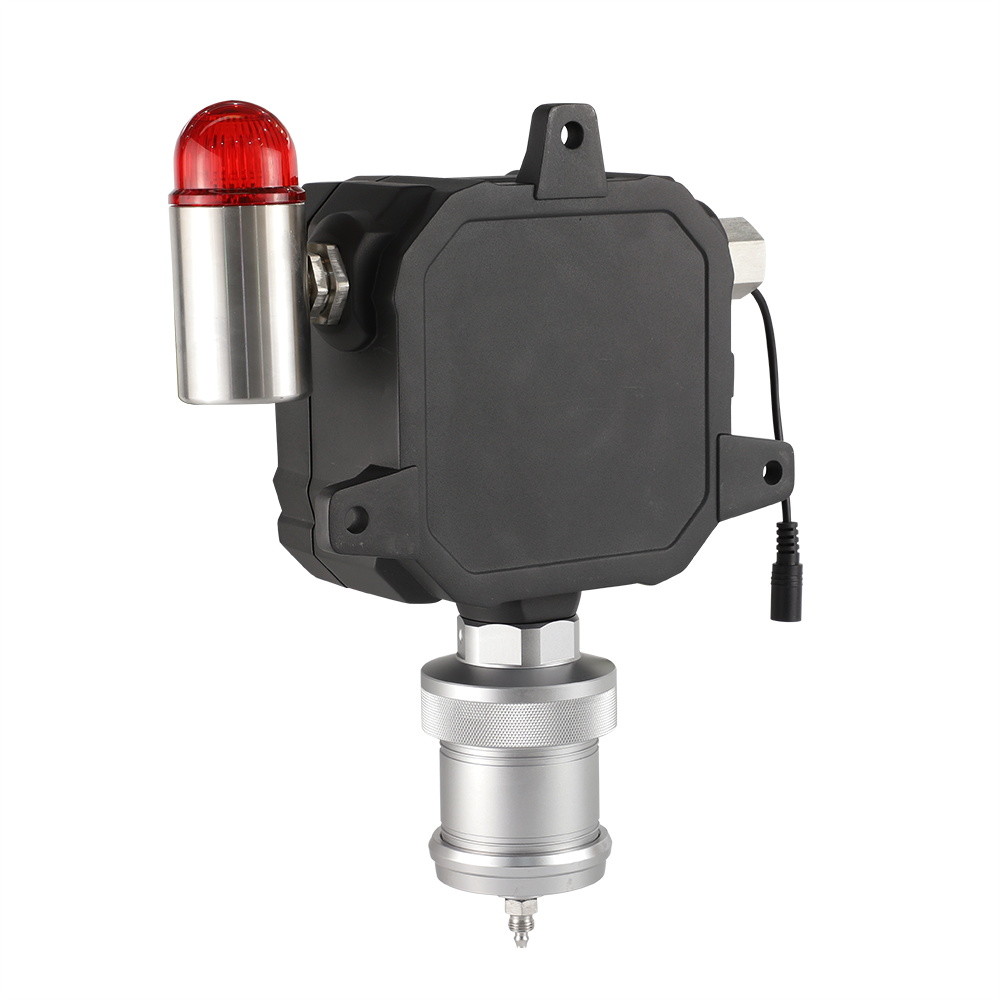

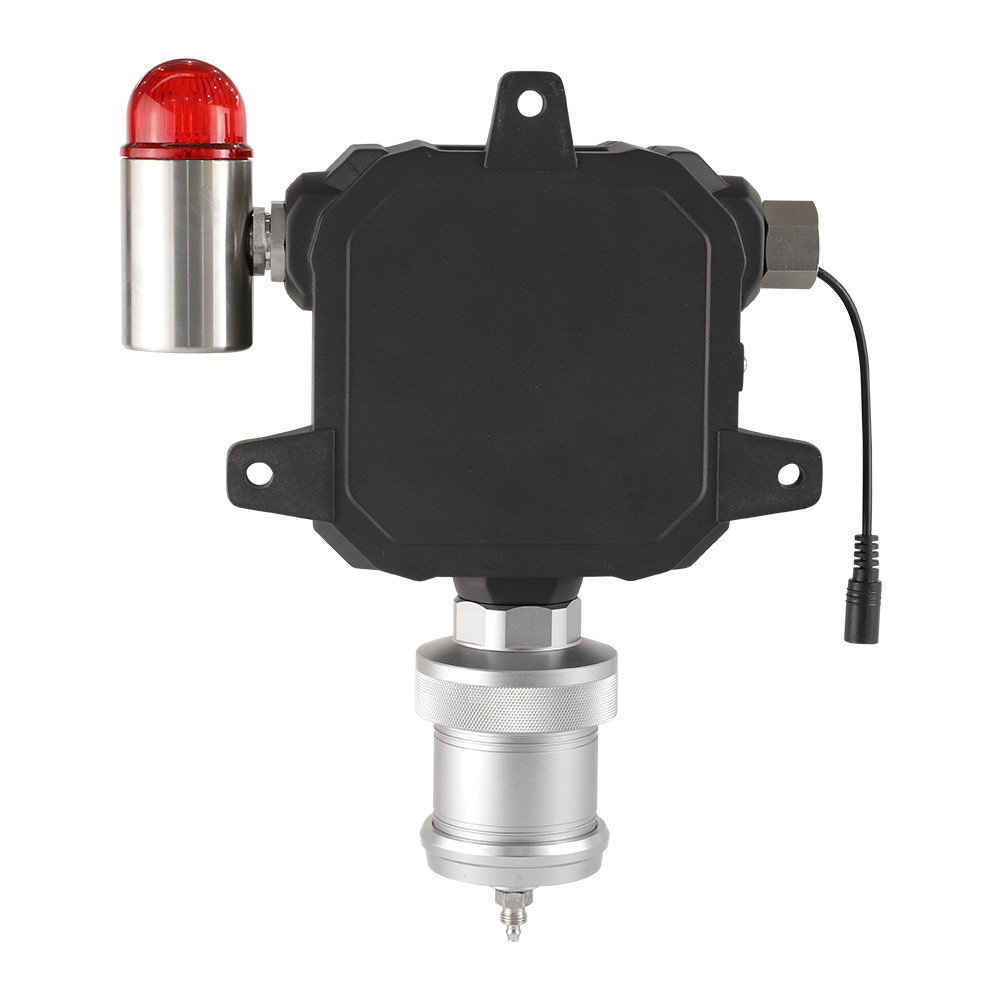

Product Picture--YT-98H-A(with display and alarm light)




Fixed Pump Suction LEL, CO2, CO, H2S, O2 5 In 1 Gas Detector Imported Sensor Wireless Function 2

Fixed Pump Suction LEL, CO2, CO, H2S, O2 5 In 1 Gas Detector Imported Sensor Wireless Function 3

Fixed Pump Suction LEL, CO2, CO, H2S, O2 5 In 1 Gas Detector Imported Sensor Wireless Function 4

Fixed Pump Suction LEL, CO2, CO, H2S, O2 5 In 1 Gas Detector Imported Sensor Wireless Function 5






Specificiation


Gas Detected

LEL, CO2, CO, H2S, O2

Detection principle

Catalytic(LEL),Electrochemical(O2/CO/H2S),Infrared Ray(CO2)

Install methode

Wall-mounted, piping type, flow-type(according to the detected environment)

Measure Range

LEL: 0-100%LEL, O2: 0-30%vol,CO: 0-1000ppm, H2S: 0-100ppm, CO2 0-5000PPM

Resolution



LEL: 1%LEL,O2: 0.1%vol, CO: 1ppm, H2S: 0.1ppm, CO2: 0-5000PPM

Accuracy

≤±2-5%FS (depending on the specific sensor)

Signal Output

4-20MA, RS485, relay

Response Time(T90)

15-30s(depending on the specific sensor)

Recovery Time

≤10S

Repeatability

≤±1%

Display

2.4-inch color display, resolution 320*240

Operating language

English/Chinese

Display content

gas molecular formula, concentration, unit, pump
status, etc

Temperature

-20ºC~55ºC

Humidity

0-95%RH

Explosion-Proof

IECEX:Ex db IIC T6 Gb
ATEX :Ex db IIC T6 Gb

Degree of protection

IP66

Alarm mode

Sound, light

Operating time

24h

Dimensions

43*27*15cm

Weight

4.6kg




Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service


Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas)is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.





Product line

Our products contain portable types, fixed types and controller panels.

Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000

Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200

Controller panels: YT-1100H, YT-1600H

Fixed Pump Suction LEL, CO2, CO, H2S, O2 5 In 1 Gas Detector Imported Sensor Wireless Function 6



Certifications

IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001

Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.

Fixed Pump Suction LEL, CO2, CO, H2S, O2 5 In 1 Gas Detector Imported Sensor Wireless Function 7



Company we cooperated

Huawei, Cocacola, Samsung, Nestel and so on.

Fixed Pump Suction LEL, CO2, CO, H2S, O2 5 In 1 Gas Detector Imported Sensor Wireless Function 8




Indonesia:XX Solid Waste Treatment Company YT-98H-M4 fixed toxic gas detector application case
Detection requirements:
The customer factory needs to add the fixed toxic and harmful gas detector, and needs to
install the detectors in two areas. The possible toxic and harmful gases are : CO2, H2S,and
HCN. They also need to detect the flammable gas and 02.
The solutions are as follows:
We recommend the fixed built-in pump suction multi-gas detector——YT-98H-M4.
1.This detector has obtained the international ICECEX and ATEX certificates, with long service
life and low fault rate. It has fast reaction speed in monitoring highly toxic gas like HCN, and the
monitoring data is very accurate.
2.We provide a complete solution to the customers,which is fixed multi-gas detector plus Bus
System control panel YT-1600H. The gas concentration monitored by the multi-gas detector
can be uploaded to control panel in a real-time, and the control panel can upload the data to the
computer at the same time, then upload to the SAFEGAS cloud further, the customers can
check the real-time data and alarm events of the detector through SAFEGAS cloud.
