Specifications
| Sampling method |
Pump suction |
| Gas type |
CH4, CO, CO2, H2S, NO2, O2 |
| Measure range |
CH4 0-100%LEL, CO 0-1000PPM, CO2 0-5000PPM, H2S 0-100PPM, NO2 0-20PPM, O2 0-30%VOL |
| Resolution |
1%LEL (CH4), 1PPM (CO, CO2), 0.1PPM (H2S), 0.01PPM (NO2), 0.01%VOL (O2) |
| Response time |
≤10 seconds |
| Precsiion |
≤±1%F.S |
| Language |
English(Other languages can be customized) |
| Automatically test and calibrate after power-on |
Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit |
PPM and mg/m³ can be switched |
| Disaply |
monochrome graphics (160 x96) ,screen can be automatically flipped |
| Backlight |
The backlight time can be manually set, and will be turned on automatically when an alarm is issued |
| Data record |
Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported |
| Alarm |
95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function |
| Battery |
3.7V rechargeable lithium battery, battery capacity 2200mA |
| Working hours |
More than 15 hours in continuous pumping mode |
| Charger |
Travel charger with DC interface, charging time ≥ 4 hours |
| Explosion-proof grade |
IECEX/ATEX(II IG Ex ia IIC T4
CNEX:Ex ia IIC T4 Ga |
Certification
(EU regulations) |
2004/108/EC(EMC)
1995/5/EC(Radio)
94/9/EC(ATEX) |
| Protection grade |
IP67/IP68 |
| Working temperature |
-20ºC~+50ºC |
| Humidity |
0~90%RH(no condensation) |
| Environmental pressure |
86~106Kpa |
| Size |
157*84.5*59.5mm (including back clip/water trap filter) (length * width * height) |
| Weight |
365g (including battery, belt clip and filter) |
| Bluetooth function(Optional) |
Gas Concentration Meter O2 LEL H2S CO CO2 data can be transmitted to the mobile phone or PC in real time
|
Product Description
SKY3000 Portable gas detector
1. Multi-Gas Detection & Emergency Protection
- Simultaneously detects oxygen, VOCs, combustible gases, and toxic gases, addressing comprehensive monitoring needs in complex environments.
- Equipped with a Man Down Alarm function that triggers automatic alerts when the operator falls, enhancing on-site safety.
2. User-Friendly Operation & Data Transmission
- One-key safety detection and data storage simplify operational procedures; automatic image flipping adapts to different viewing angles.
- Optional Bluetooth transmission enables real-time delivery of monitoring data and alarm status to safety personnel for remote supervision.
3. High Protection Rating & Explosion-Proof Certification
- Holds international IECEX, ATEX, and Chinese explosion-proof certifications, suitable for explosive gas mixture Zones 0, 1, 2 (Group ⅡA/ⅡB/ⅡC, Temperature Class T1~T4).
- Passes anti-static tests with an IP67 protection rating, ensuring dust-tightness and water immersion resistance (up to 1m for 30 minutes).
4. Reliable Design for Practical Use
- Module-based design accelerates detection speed, while the compact ergonomic structure ensures easy portability.
- Primary suction sampling mode automatically switches to diffusion sampling in case of air pump failure or emergencies, maintaining continuous monitoring.
5. Explosion-Proof Grade & Application Scope
- Explosion-proof mark: Ex ia IIC T4 Ga, suitable for hazardous areas with flammable gases, vapor mixtures, and combustible dust.

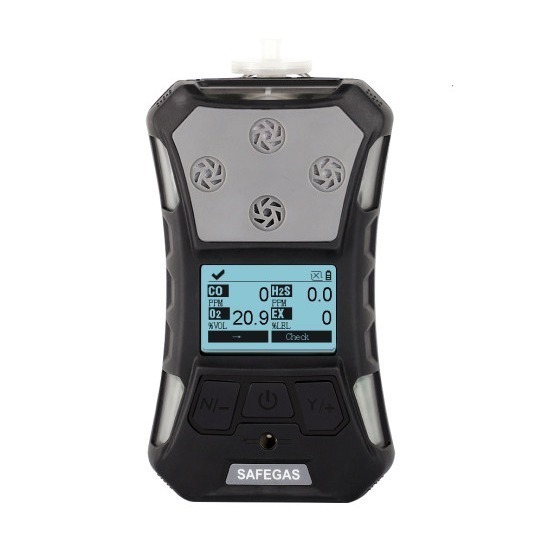

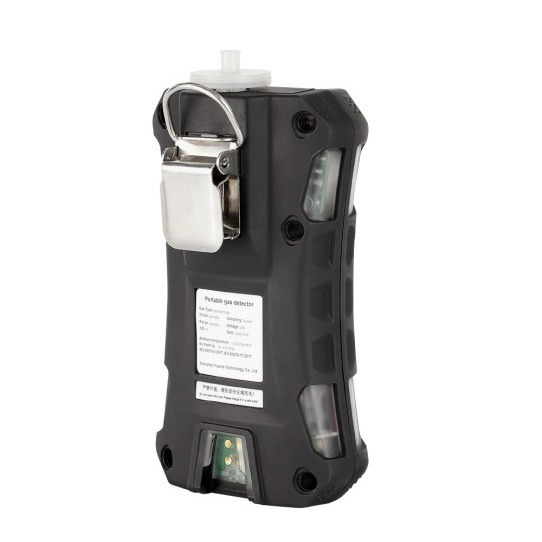

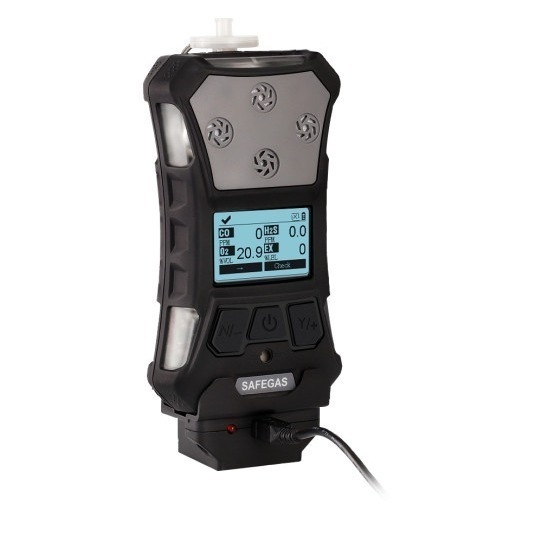

Product Picture
Applications
This device is widely used in these filed:
●Petrochemical & Chemcial Industry
●Municipal Engineering & Utilities
●Agricultral & Environmental Protection
●Electronic
●Food & Pharmaceutical Industry
Application photos:
Product configuration
Standard accessories:
●Gas detector 1 piece
●12V/1A DC power adapter 1 piece
●USB cable 1 piece
●User manual 1 piece
●Warranty card 1 piece
●Filter 1 piece

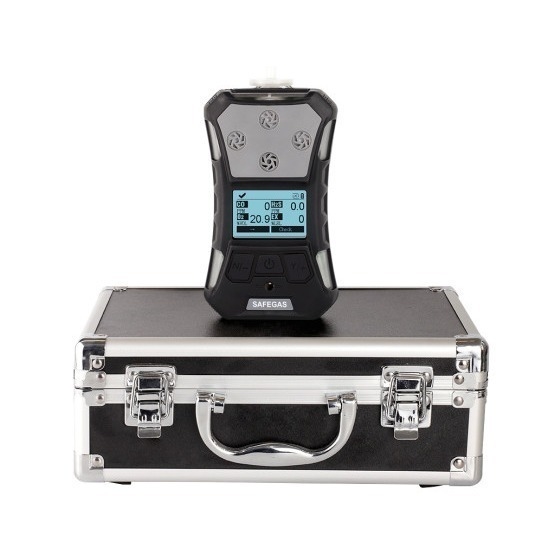

●Aluminum suitcase 1 piece
Product Application
Chemical Industry
Environmental Monitoring
Healthcare Applications
Automotive Industry
Industrial Safety
Wastewater Treatment
Greenhouse Gas Monitoring
Oil and Gas Exploration
Food and Beverage Production
Mining and Mining Operations
As a professional gas detector manufacturer, we control the entire process from design-R&D-production-sales to ensure the consistency of product quality. We have more than 100 independent intellectual property patents in design and development;In production, we have skilled technical workers and a complete industrial line, which can grasp the production and quality of products throughout the process;and our company has rich overseas sales experience and a professional sales team, can provide customers with 7*24h considerate service.
We have professional R&D department, thet have been engaged in gas detect industrial for about 25 years.They have professional knowledge and rich experience,can provide customers with professional technical after-sales service.
We carry out a strict quality management system and take the principle of quality first as the core to produce gas detector,Therefore, we have been recognized by authoritative organizations and obtained ISO9001 and ISO14001 certifications to provide customers with safe and environmentally friendly products.
Our products have obtained IECEx and ATEX explosion-proof certification, so our detectors can be used in hazardous areas such as mines, underground and oil plants. We are the first and currently the only manufacturer in China who obtain this certification, products without explosion-proof certification are prohibited from being used in dangerous areas.
Our core components, such as ICs or sensors, use imported brands like Honeywell, CITY and Alpha, which improving the accuracy of our product,stabilizing the product's service life, ensuring the accuracy of detection and protecting the safety of customers' lives.
Our complete product line and stable inventory provide customers with fast delivery. If the order quantity is less than 10 pcs, we usually deliver them within 3 days. If the quantity exceeds 100 pcs, under normal circumstances,we can deliver it within half a month.
