Specifications
| Sampling method |
Pump suction |
|
Gas type
|
LEL, CO2, CO, H2S, O2, SO2
|
|
Measure range
|
LEL 0-100%LEL, CO2 0-50000PPM, CO 0-500PPM,
H2S 0-100PPM, O2 0-30%VOL, SO2 0-20PPM
|
|
Resolution
|
1%LEL(LEL), 100PPM(CO2), 1PPM(CO),0.1PPM(H2S, SO2), 0.1%VOL(O2)
|
| Response time |
≤10 seconds |
| Precsiion |
≤±1%F.S |
| Language |
English(Other languages can be customized) |
| Automatically test and calibrate after power-on |
Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit |
PPM and mg/m³ can be switched |
| Disaply |
monochrome graphics (160 x96) ,screen can be automatically flipped |
| Backlight |
The backlight time can be manually set, and will be turned on automatically when an alarm is issued |
| Data record |
Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported |
| Alarm |
95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function |
| Battery |
3.7V rechargeable lithium battery, battery capacity 2200mA |
| Working hours |
More than 15 hours in continuous pumping mode |
| Charger |
Travel charger with DC interface, charging time ≥ 4 hours |
| Explosion-proof grade |
IECEX/ATEX(II IG Ex ia IIC T4
CNEX:Ex ia IIC T4 Ga |
Certification
(EU regulations) |
2004/108/EC(EMC)
1995/5/EC(Radio)
94/9/EC(ATEX) |
| Protection grade |
IP67/IP68 |
| Working temperature |
-20ºC~+50ºC |
| Humidity |
0~90%RH(no condensation) |
| Environmental pressure |
86~106Kpa |
| Size |
157*84.5*59.5mm (including back clip/water trap filter) (length * width * height) |
| Weight |
365g (including battery, belt clip and filter) |
| Bluetooth function(Optional) |
Gas Concentration can be transmitted to the mobile phone or PC in real time
|
Product Description
SKY3000 Portable gas detector
SKY3000 series is a high-performance portable gas detector that can detect multiple gases (Oxygen compounds VOC, combustible gas and toxic gas) at the same time and has man down alarm function.The device has humanized operation functions such as one-key security detection, one-key storage, automatic image flipping, as well as the man down alarm function; With optionalBluetooth transmission function, allowing safety personnel to obtain real-time data and the alarm status.
It has obtained international IECEX, ATEX explosion-proof certification and Chinese explosion-proof certification; As it passed the antistatic test, and the protection level reaches IP67; With safer product design and the module designwhich makes the detection faster, and the compact ergonomic design makes the device easy carrying; The instrument is mainly working in suction mode. When the air pump fails or in special emergency situations , it can automatically switch to the diffusion sampling method, thereby improving the protection to a new Level.
The explosion-proof Grade of the SKY3000 series is Ex ia IIC T4 Ga,which is applicable to the explosive gas mixture zone 0, zone 1, and zone 2 of the factory with grades ⅡA, ⅡB, and ⅡC and temperature group T1~T4.
Product Advantage
Rugged and durable
Explosion-proof circuit design, safe and reliable
Multiple security protection
Large screen display, flexible detection system, multiple filtering devices

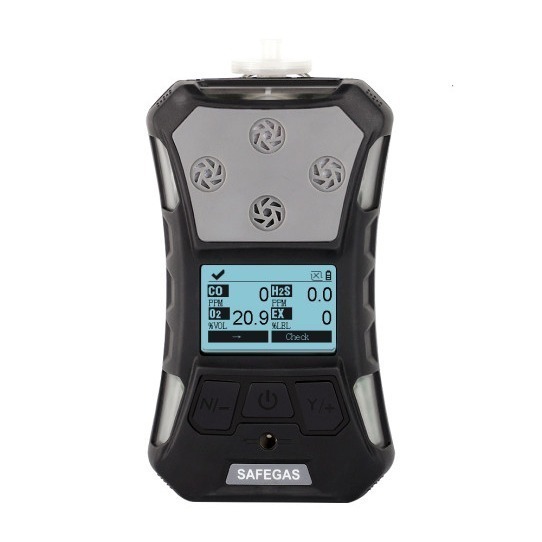

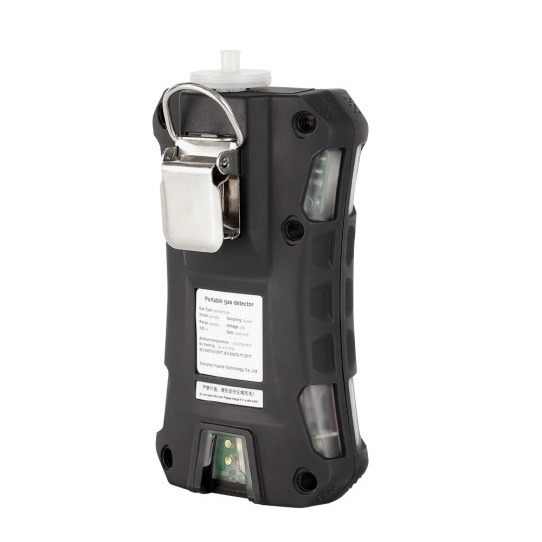

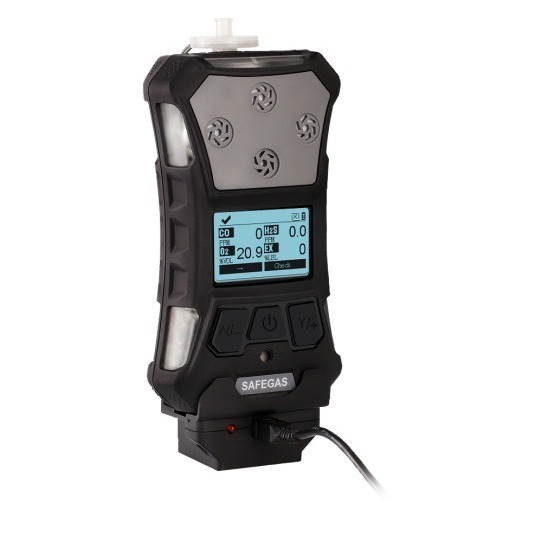

Product Picture
Applications
This device is widely used in these filed:
●Petrochemical & Chemcial Industry
●Municipal Engineering & Utilities
●Agricultral & Environmental Protection
●Electronic
●Food & Pharmaceutical Industry
Here’s some application photos:
Product configuration
Standard accessories:
●Gas detector 1 piece
●12V/1A DC power adapter 1 piece
●USB cable 1 piece
●User manual 1 piece
●Warranty card 1 piece
●Filter 1 piece

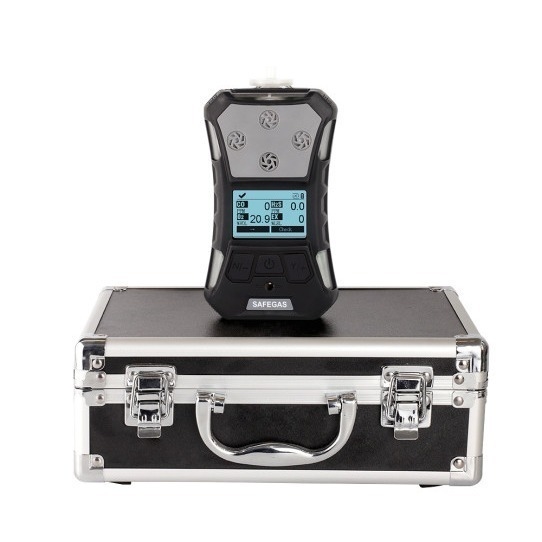

●Aluminum suitcase 1 piece
Application Case:
Thailand XX Bottling Company Detects Toxic and Harmful Gases in Confined Spaces of Tank Pipelines: SKY3000-M4 Application Case
Detection requirements:
- The customer company needs to detect toxic and harmful gases in the confined spaces of some tank pipelines, mainly CO/H2S/EX/O2. The purpose of detection is to prevent personnel from suffering hypoxia and poisoning, as well as gas explosions.
- The customer requires the equipment to have a high explosion-proof and protection level.
- The equipment should be pump-suction type and can be equipped with a hose for extended sampling detection.
- The equipment needs to use imported sensors with high detection accuracy.
Solutions:
Gas detector: SKY3000 equipped with imported CO/O2/H2S/EX sensors.
Solution Features:
- All recommended devices meet the customer's needs.
- The device has obtained the international explosion-proof IECEx and ATEX certifications, and reached Ex da ia IIC T4 Ga explosion-proof grade. The protection grade reaches IP67, with a high protection level.
- We provide customers with a 3-meter hose at the front end. Workers can use the hose for extended detection before working in the tank pipelines. After ensuring safety, they can enter the workplace.
- The device is equipped with a data storage, recording, and export function. The detected data can be easily exported and viewed via a computer and can be synchronized with daily work inspection records.
