Product Specification
|
Detect gas
|
Oxygen(O2)
|
|
Sensor type
|
Electrochemical
|
|
Sampling method
|
Diffusion
|
|
Measure range
|
0-30%VOL
|
|
Resolution
|
0.01%VOL
|
|
Precision
|
≤± 3% F.S.
|
|
Response Time
|
≤30s(T90)
|
|
Unit
|
%VOL
|
|
Display
|
Gas name, concentration unit, measured value, electricity
|
|
Alarm mode
|
Sound, light, vibration alarm, high and low alarm values can be set by yourself
|
|
Alarm type
|
Low alarm, high alarm, STEL, TWA, low battery
|
|
Display
|
LCD Display
|
|
Operating language
|
Chinese/English
|
|
Size
|
90*60*33mm
|
|
Weight
|
125g
|
|
Working Temperature
|
-20ºC~50ºC
|
|
Working Humidity
|
0-95%RH
|
|
Working air pressure
|
86~106kpa
|
Product Overview
MiniMeta is a highly reliable and versatile single-gas detector, boasting IECEX/ATEX/EMC certifications. These credentials demonstrate its compliance with the strictest international safety and electromagnetic compatibility standards. For instance, the IECEX certification confirms its suitability for use in explosive atmospheres, while the ATEX certification validates its safety in potentially hazardous environments across Europe. The EMC certification ensures that MiniMeta neither interferes with other electronic devices nor malfunctions in electromagnetic-noisy surroundings.
1. **Powerful Detection Capability**
- MiniMeta can detect hundreds of user-defined toxic gases. Whether it is the commonly encountered yet hazardous carbon monoxide, the pungent hydrogen sulfide, or a wide range of other noxious gases, MiniMeta is engineered to identify them with high precision. This extensive detection range makes it an excellent choice for various industries, including oil and gas, chemical manufacturing, mining, and environmental monitoring.
2. **User-Friendly Design**
- Designed with user convenience in mind, MiniMeta features an intuitive interface that allows even those with limited technical knowledge to operate it effortlessly. With simple controls and clear displays, users can quickly understand the readings and alerts. Additionally, the device is equipped with user-friendly functions such as easily navigable menus and distinct audible and visual alarms.
3. **Replaceable Components for Long-Term Use**
- Both the battery and sensor of MiniMeta are replaceable, which is a significant advantage for long-term operation. The replaceable battery ensures continuous operation, eliminating users' concerns about power outages during crucial monitoring periods—simply swap the battery to resume gas monitoring. Similarly, the replaceable sensor extends the device's lifespan. Since sensors may degrade over time due to gas exposure, the ability to replace them ensures MiniMeta continues to provide accurate readings, offering users long-term protection while reducing overall maintenance costs.
4. **Cost-Effective and Long-Term Solution**
- MiniMeta is strategically designed to offer a cost-effective gas monitoring system for long-term ownership. By providing a high-quality yet affordable solution, it enables businesses, especially those with budget constraints, to implement a reliable gas monitoring strategy. Combining its wide detection range, user-friendliness, and replaceable components, MiniMeta represents an investment that yields long-term benefits, ensuring continuous and efficient gas monitoring while keeping costs under control.

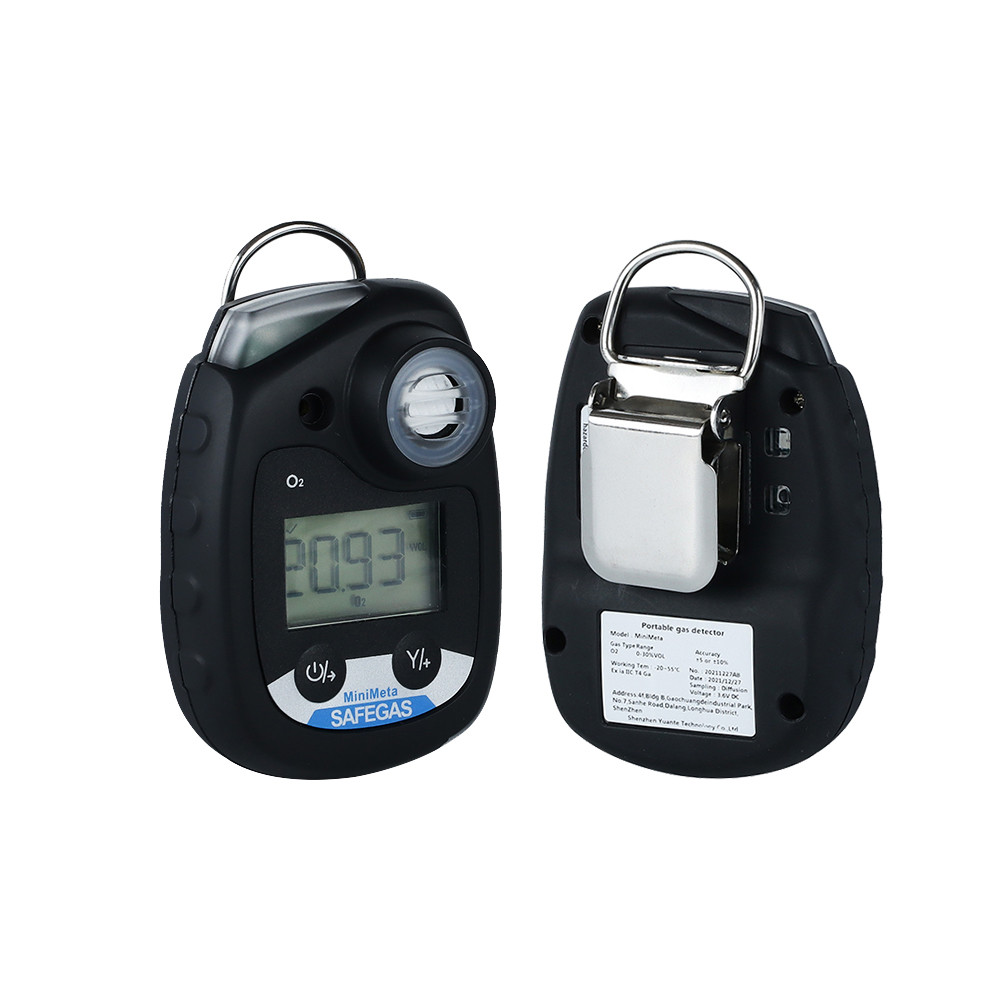

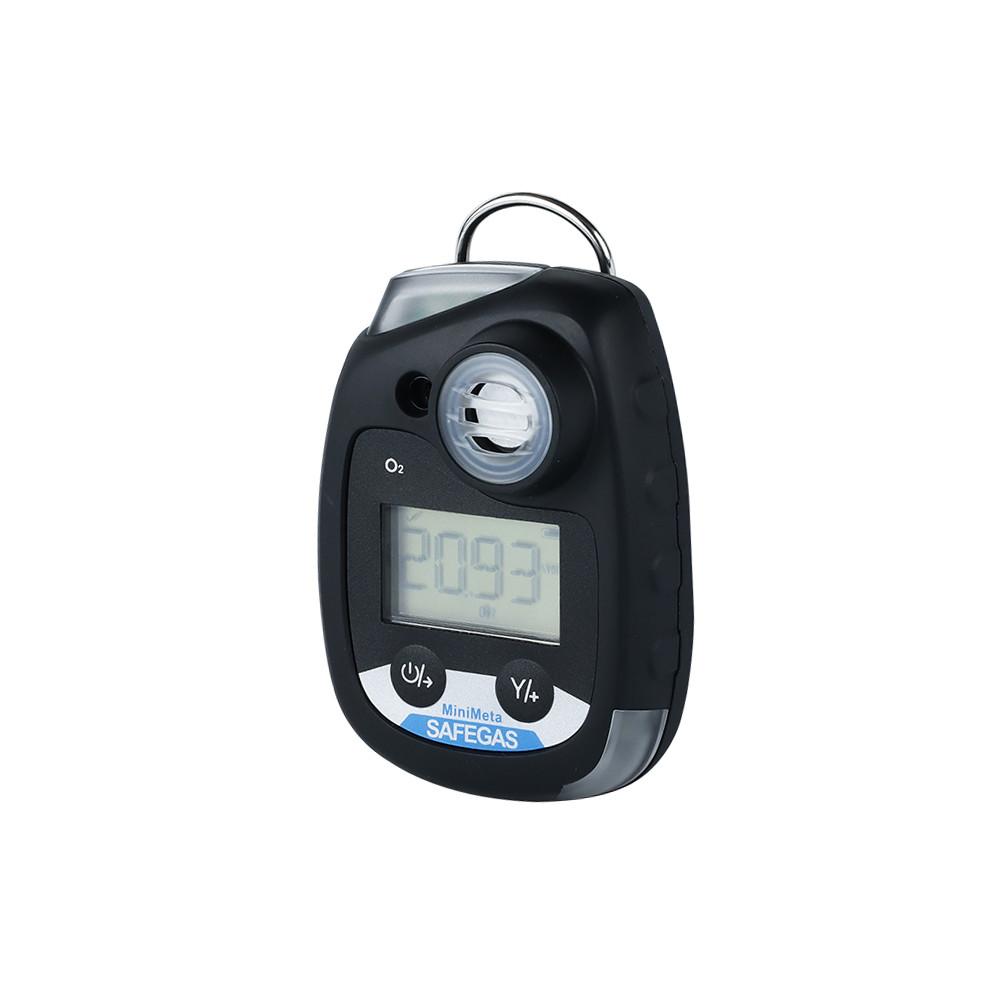

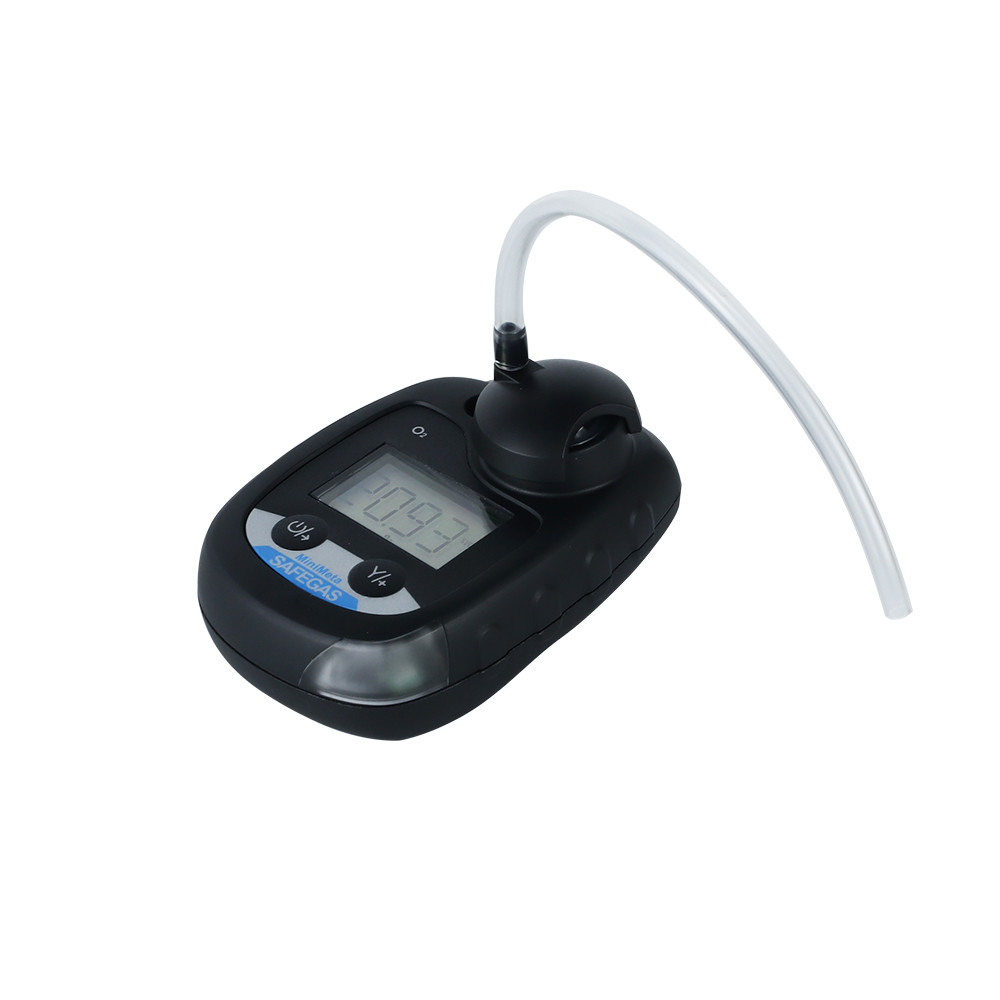

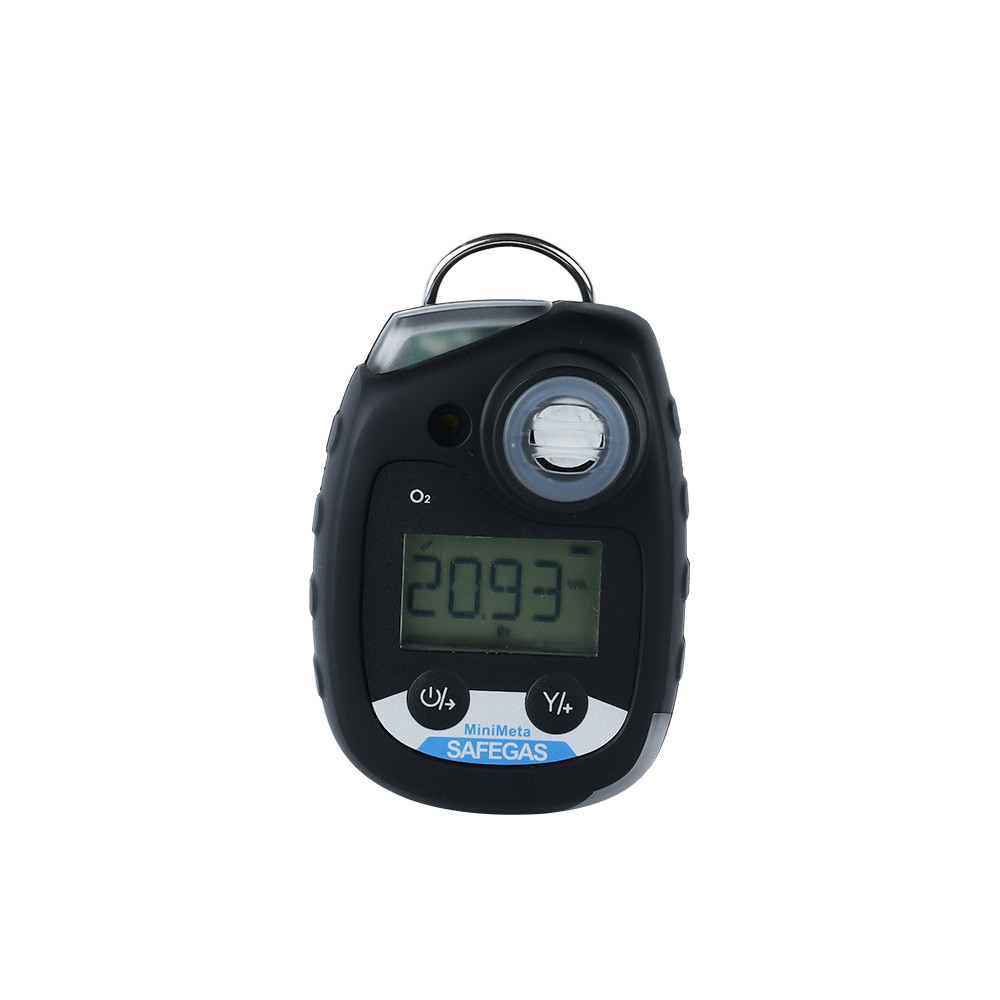

Product Picture
Product Advantage
1) IP68 water- and dust-resistant case
2) Low power consumption with 2 years standby time, no need battery charge and calibration
3) With Single /multi unit docking station to perform daily bump test and calibration (Optional)
4) With event and data logging function (Optional)
5) With self-test function, which can improve safety by automatic self-test
6) Small size, lightweight and with back clip for easily carry
7) 95db@30cm buzzer alarm, 2 high-bright red LED light alarm and vibration alarm
8) Real time value, TWA, STEL, MAX, MIN multiple numerical display
Standard
1) Portable gas detector 1 piece
2) Calibration cap 1 piece
3) User manual 1 piece
4) Certificate of conformity/ Warranty card 1 piece
Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas)is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
Product line
Our products contain portable types, fixed types and controller panels.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.
Company we cooperated
Huawei, Cocacola, Samsung, Nestel and so on.
FAQs
Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in the gas detector for more than 10 years.
Q2:What is the MOQ?
A2:Usually it is 1 piece.
Q3:How about the quality of your products?
A3:Our product is made of imported sensors and components, the products are certified.
Q4:How long is the warranty time of the products?
A4:The warranty period is 1 years from the factory, we also provide lifetime maintenance.
