Product Overview
The SKY8000 is a portable gas analysis instrument. It is widely used in industrial waste gas, air pollution source emission detection, boiler flue gas, automobile exhaust gas, indoor air analysis and other applications. The analytical instrument can flexibly detect 1-18 kinds of gases; 1-3 modules can be selected, each module corresponds to one pump, and the internal structure is modularized to take separate air intake for the disturbing gas, effectively avoiding cross interference between gases.
Adopt 3.5-inch high-definition IPS LCD color screen, 150 degree wide viewing angle, Chinese and English operation interface; fall alarm, password protection, safety reminder and other functions for safety upgrade; optional high temperature probe can monitor the gas concentration in harsh high temperature and high humidity environment; The large-capacity lithium battery has a long standby time; the instrument casing is made of high-strength engineering materials, and its unique shape design and practical ergonomic operation can inprove users using feeling.
Product Advantages
Exterior atmosphere, 3.5-inch high-definition color screen

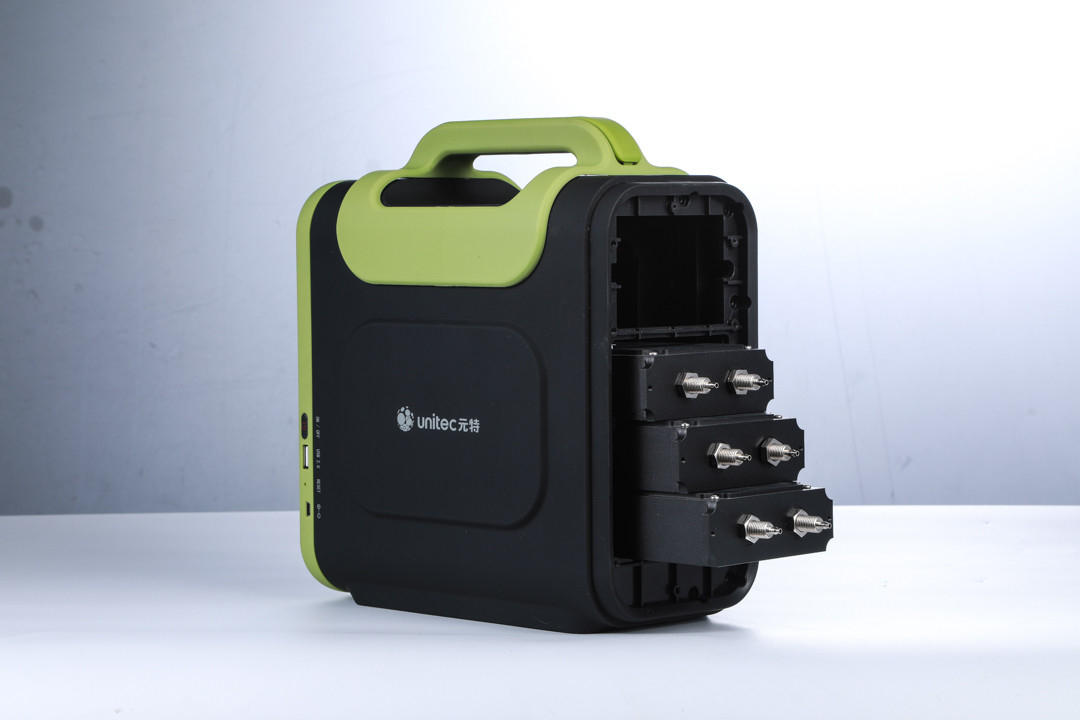

Modular internal structure
High customizability
Flexible, multi-pump system
Multiple display modes coexist
Data Storage
Multiple security protection
Powerful and more user-friendly

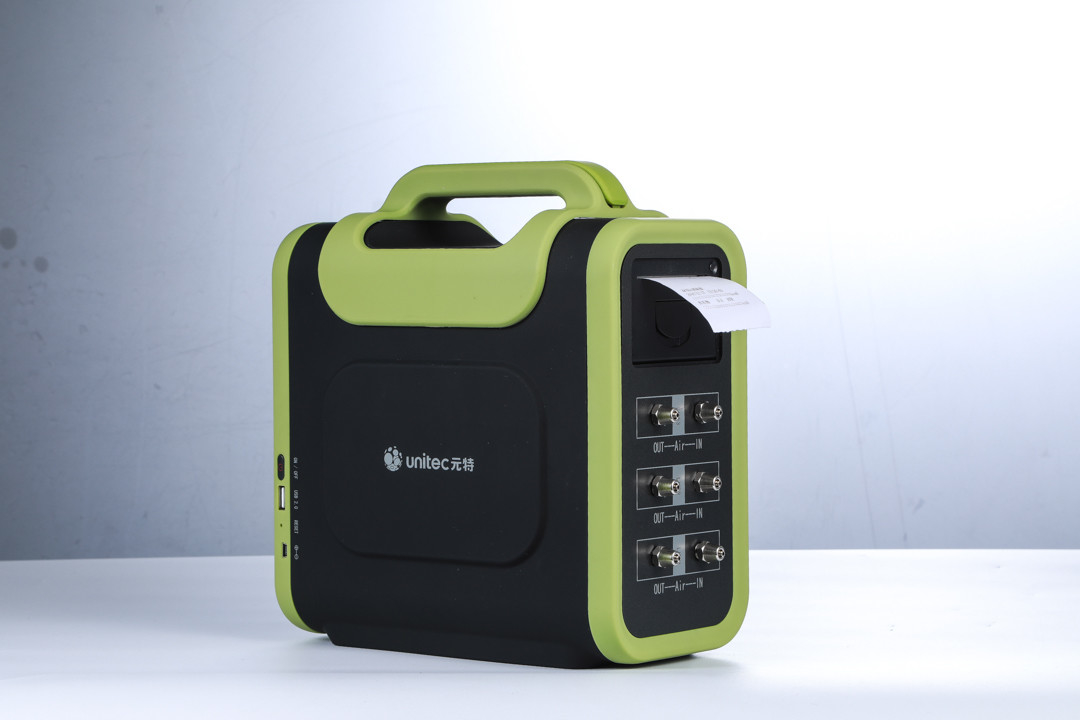

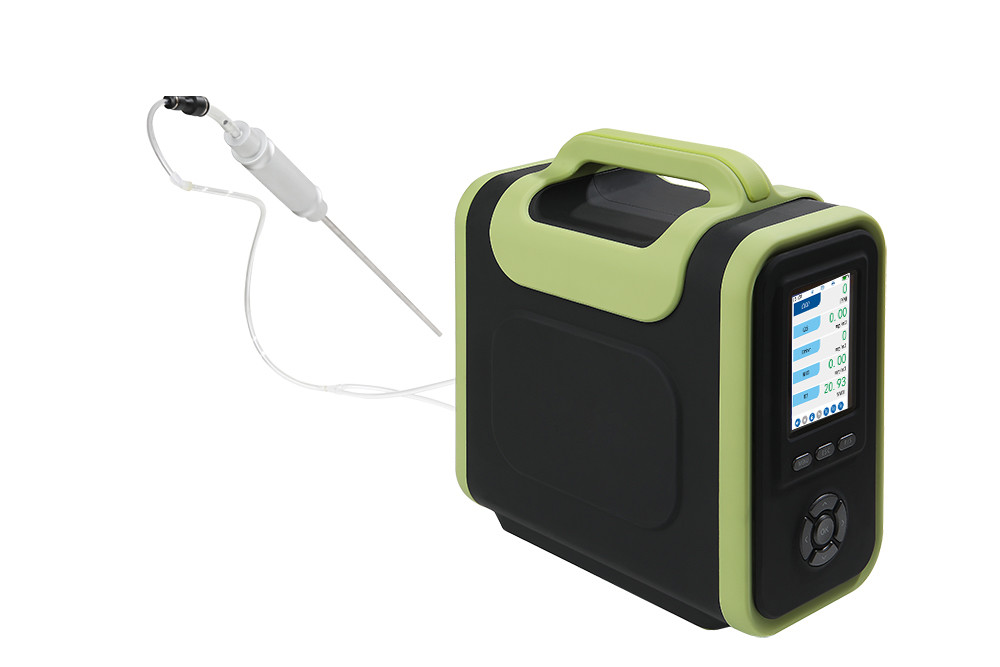

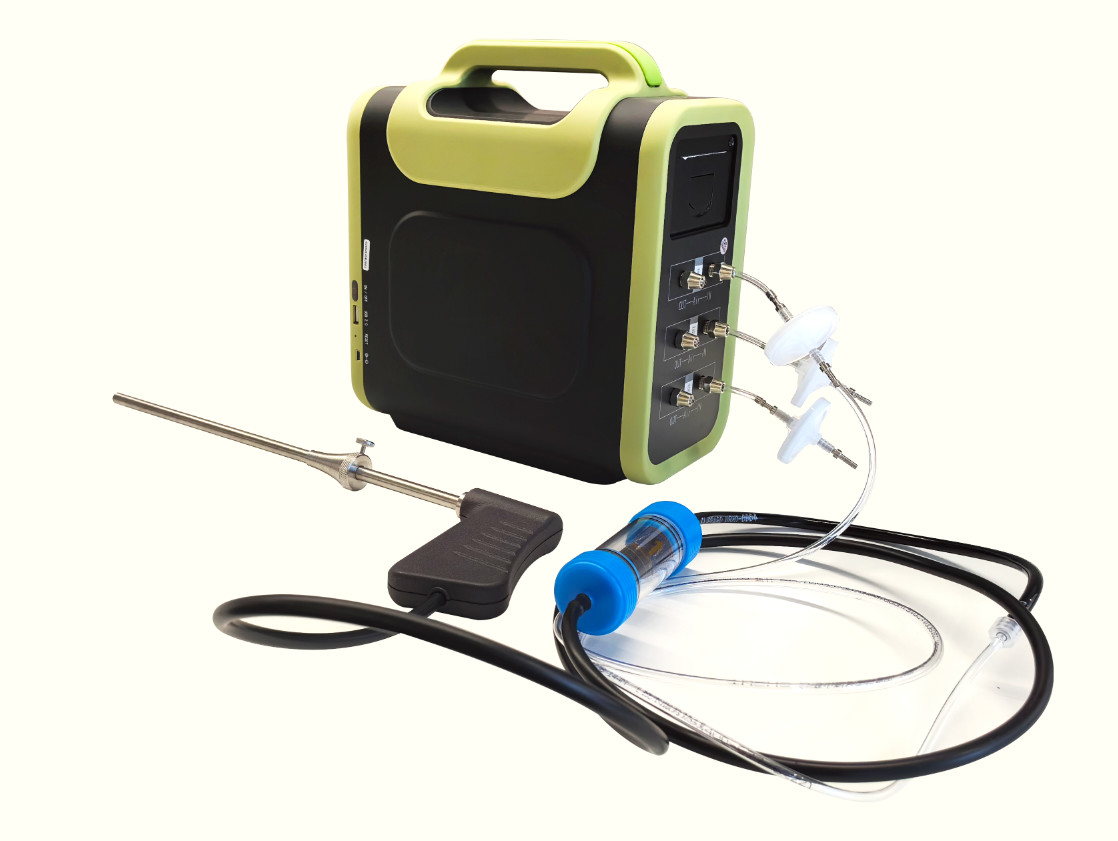

Product Pictures
![]()
Producta Specificiation
| Sensors |
|
Infrared Ray(CH4, CO2)Electrochemical (H2S)
|
| Gas detected |
|
CH4, CO2, H2S
|
| Measure range |
|
0-100%VOL(CH4, CO2), 0-5000PPM(H2S)
|
| Resolution |
|
0.1%VOL(CH4, CO2), 1PPM(H2S)
|
| Display |
|
Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status |
| Alarm |
|
Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm |
| Data storage |
|
Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval. |
| Data transmission and download |
|
RS485 singnal output,USB interface data transmission, with the upper computer software, can download storage, analyze and print data |
| Print function(Optional) |
|
Optional with internal portable printer or external bluetooth printer |
| Print content(Optional) |
|
Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc. |
| Charger |
|
Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer ) |
| Language |
|
Chinese/English |
| Wireless network (optional) |
|
Bluetooth |
| Network frequency |
|
2.4G high frequency. |
| wireless transmission distance |
|
Bluetooth is less than 10m |
| |
|
|
Attachment configuration list
Standard accessories:
1) One User manual
2) One certificate/warranty card
3) One 8G large capacity SD card (more capacity needs to be customized)
4) One charging adapters
5) One water trap filter
6) One intake sampling probe
7) One 1000mm hose
8) One non-toxic, odorless, explosion-proof, waterproof, heat-resistant, high-low temperature resistant, corrosion-resistant suitcase
Optional accessories:
1) Printer (built-in thermal printer) one
2) A set of high temperature flue gas detectors
Application case
SKY8000 Series are widely used in Agriculture, industry, research LABS, chemical plants, smelters...... Here's an application case for your reference:
Uganda Xxx Mine Detects 7 gases in confined spaces:
SKY8000-M7 Application Case
Detection requirements:
The staffs often need to enter confined spaces in their daily work. The client want to know the
concentration of various gases in the confined spaces before entering to avoid dangerous incidents
caused by excessive concentration of toxic and harmful gases or too low oxygen concentration.
In addition to the conventional four gases LEL, O2, CO, and H2S to be detected, PH3, NOX, and VOC
concentrations need to be detected too. They hopes the concentrations of these seven gases can be
detected by one device.
Solution:
SKY8000-M7, SKY8000 equipped with original imported gas sensors.
Solution features:
1.The recommended device meets customer needs.SKY8000 can detects up to 18 gases, can meet
customer needs to detect the seven gases with one device.
2. Equipped SKY8000 with original imported sensor, with high resolution and long service life,
the accurate and stable detection are guaranteed.
3.SKY8000 has internal pump which can actively extract the gas for detection, the pump suction is
500ml/min, greatly improve the detection speed.
4.The screen of SKY8000 is a 3.5-inch high-definition color screen, make the data easy to view.
In addition to simply display the concentration values of each gas, the gas concentration can be view
in curve mode, which can clearly show the trend of gas concentration changes over time.This function
allows the customer to know if the gas concentration is decreasing in the confined space and to take
certain measures like ventilate to speed up the gas concentration reduce.
