Name: Hot Swappable Sensor Module C2H6O Fixed Gas Detector with IP66/68 Protection and IECEX ATEX Certification
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: SG100
Price: 1,037.00 USD
Availability: InStock

Informazioni dettagliate

Gas rilevato:	C2H6O	Misura l'intervallo e la risoluzione:	0-100 ppm
Resolusion:	0,1 ppm	Tipo di sensore:	Elettrochimico
Precisione:	≤ ± 2-5%fs	Certificazione a prova di esplosione:	IECEX, ATEX, CE
Grado di protezione:	IP66/68	Modalità di comunicazione:	4-20 mA 、 rs485 1 ～ 5V ， Hart opzionale
Wireless (opzionale):	Supportare Lora o 4G	Relè:	3 relè, compreso il relè di allarme basso/alto/fallo (facoltativo)
Temperatura di lavoro:	–20 ℃～ 50 ℃	Peso:	1,0 kg
Misurare:	157.8x128.8x69.6mm

Descrizione di prodotto

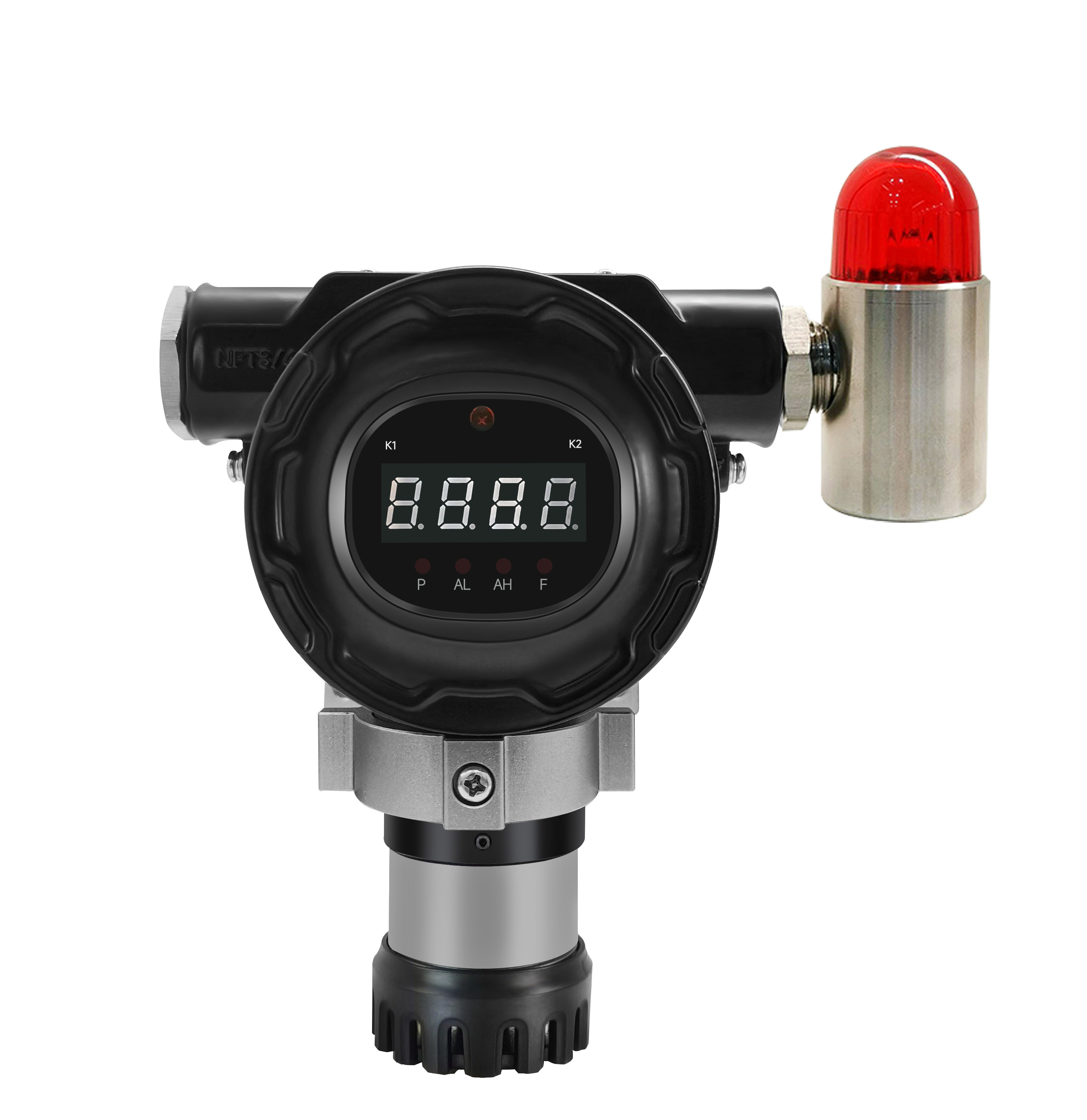

Hot Swappable Sensor Module C2H6O Fixed Gas Detector

For Alcohol Production and Chemical Storage Safety

Product Overview

The SG100 Fixed Gas Detector is a cost-effective solution for continuous monitoring of toxic gases, oxygen, flammable, and VOC gases. Certified with IECEx and ATEX intrinsically safe explosion grade, it features 2-wire or 3-wire 4-20 mA analog output, RS485 Modbus output, and optional HART output for compatibility with most control systems. With optional wireless data transmission, users can remotely review and download data. Supports both magnetic and remote control for flexible configuration.

Key Features

IP66/IP68 water & dust resistant rating
Intelligent plug and play sensor module with PC software calibration support
Standard splash guard for outdoor installation and water splash environments
Compact and lightweight design (1 kg) with standard mounting bracket
Standard 4-20 mA analog and RS485 Modbus signal outputs, optional HART output
Three relays included (low/high/fault alarm relay - optional)
Magnetic and remote control support for flexible configuration

Technical Specifications

Parameter	Specification
Detected Gas	Specified according to application
Measure Range	Specified according to application
Install Method	Wall-mounted, piping type, flow-type
Output Signal	4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional)
Precision	≤±1%F.S. (to be specialized)
Zero Shift	≤±1%(F.S./year)
Display	4 digits Nixie tube display
Connection Mode	G3/4 external thread explosion-proof flexible pipe

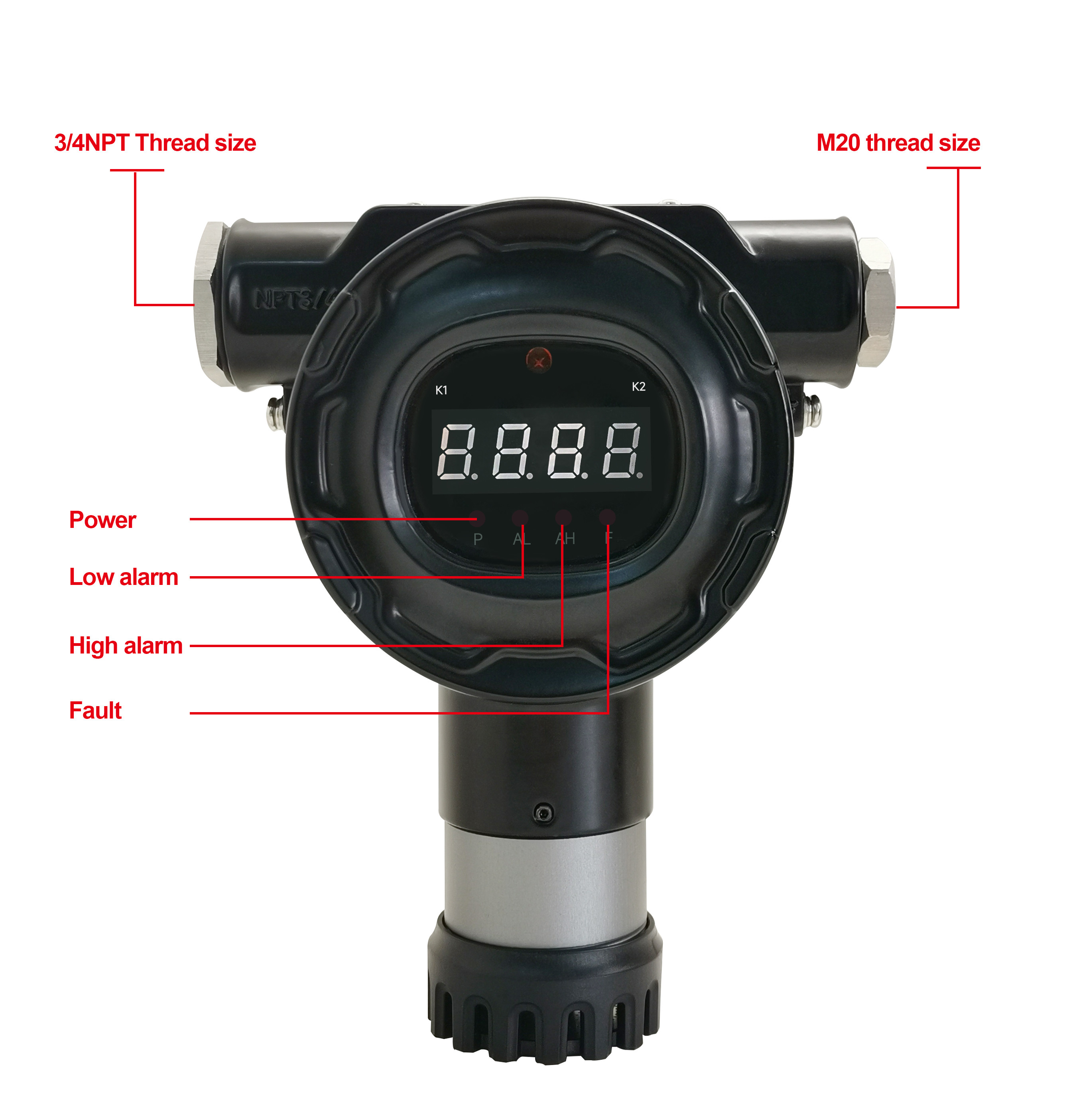

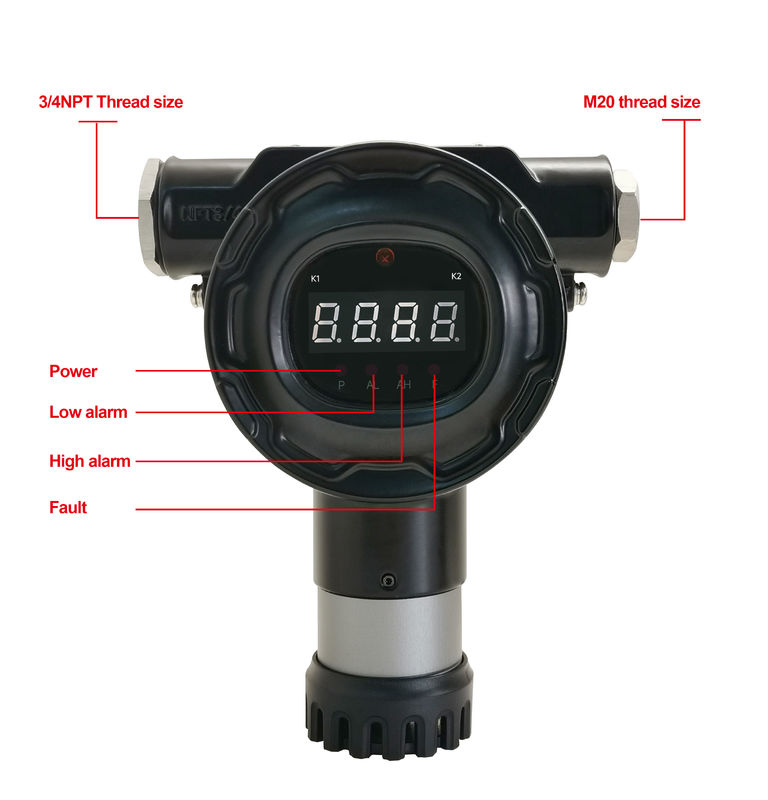

Thread Size	Standard M20*1.5, 3/4NPT
Temperature	-20℃～50℃
Humidity	10-95%RH (non-condensing)
Explosion-Proof	Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb
Degree of Protection	IP66/IP68
Material	Sensor housing: aluminum alloy or 316 stainless steel
Power	12-24V DC
Dimensions	158×129×70mm
Weight	≤1kg
Approval	CE, CNEX explosion proof certificate, CMC, IECEx, ATEX
Warranty	12 months

Detectable Gases

SG100 model can detect single gas applications. Our detectors support various gas detection capabilities.

Package Contents

Standard Accessories:

Gas detector, 1 set
Magnetic wand, 1 set
User manual, 1 piece
Conformity Certificate/warranty card, 1 piece
Installation bracket, 1 set
Infrared Ray Controller, 1 piece

Optional Accessories:

Calibration cap, power adapter, external pump, explosion-proof gland, adapter NPT3/4, adapter M20 * 1.5, sound and light alarm, etc. Please contact us for details.

Applications

Chemical Industry
Environmental Monitoring
Healthcare Applications
Automotive Industry
Industrial Safety
Wastewater Treatment
Greenhouse Gas Monitoring
Oil and Gas Exploration
Food and Beverage Production
Mining and Mining Operations

Why Choose Our Gas Detectors?

R&D team experience: over 25 years
Company certification: ISO9001, ISO45001
Product certification: IECEx (the only one in China), ATEX, CE
Delivery: 5-7 days
Yearly capacity: 80,000 units
Service: Professional sales staff provide 7*24 hours service

As a professional gas detector manufacturer, we control the entire process from design-R&D-production-sales to ensure product quality consistency. We have more than 100 independent intellectual property patents in design and development. Our skilled technical workers and complete industrial line ensure quality throughout production. Our professional sales team provides 7*24h considerate service.

Our R&D department has been engaged in gas detection industry for about 25 years, providing professional technical after-sales service.

We implement strict quality management systems with quality-first principles, recognized by authoritative organizations with ISO9001 and ISO14001 certifications.

Our products have obtained IECEx and ATEX explosion-proof certification, making them suitable for hazardous areas. We are the first and currently the only manufacturer in China with this certification.

Core components, including ICs and sensors, use imported brands to improve accuracy, stabilize service life, and ensure detection accuracy for customer safety.

Our complete product line and stable inventory ensure fast delivery: 3 days for orders under 10 pieces, half a month for orders over 100 pieces.

Frequently Asked Questions

Q1: What is a gas detector?

A1: A gas detector is an instrument for gas leakage concentration detection, including portable gas detectors and fixed gas detectors.

Q2: What does a gas detector detect?

A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc. Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.

Q3: What is the ppm unit of the gas detector?

A3: ppm represents the volume concentration of the gas, meaning the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.
